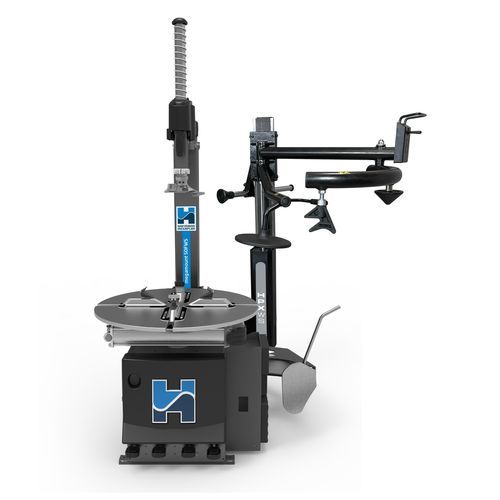

Car tyre changer megamount 50FWS

for automobilesautomaticelectric

Overview
The megamount 50FWS is an automatic tyre changer with a 24-inch plate, designed for wheel diameters up to 1170 mm (46 in) and internal clamping up to 27 in. It integrates double-speed pedal control, an HPX-WS helper arm and adjustable hex bar guidance for reliable workshop operation.

Key features

• 24-inch plate
• 50 x 50 mm square bar guided by rollers
• Adjustable hexagonal bar, 41 mm thickness
• Bead breaker shovel working range: 15 in
• Cylinder diameter: 200 mm / piston 25 mm
• Working range (bead/shovel): 10-27 in / bead breaker 15 in
• Pedals arranged in a row including rotary control; pedal unit removable for servicing
• Double speed via pedals: 8/16 rpm (inverter optional)
• Clamping cylinder diameter: 80 mm
• External clamping claws replaceable; assembly column adjustable for speed

Technical specifications

• Model: megamount 50FWS
• Plate size: 24-inch
• External clamping range: 10-24 in
• Internal clamping range: 12-27 in
• Max wheel diameter: 1170 mm (46 in)
• Max wheel width: 381 mm (15 in)
• Working range: 10-27 in
• Motor: 0.8/1.1 kW – 3 Phase – 400 V – 50 Hz
• Max torque: 1200 Nm
• Rotation speed: 8–16 rpm (double speed)
• Height of plate from floor: 670 mm
• Bead breaker max opening: 380 mm (15 in)
• Bead unseating force on shovel (10 bar): 15000 N
• Recommended operating pressure: 8–10 bar

Included accessories

• Michelin premium manual tyre inflator
• Side storage compartment
• Additional bead clamp
• Special curved tyre iron
• HPX-WS helper arm

Applications
Suitable for automotive and light commercial vehicle workshops handling passenger cars, SUVs and light trucks within the stated wheel size ranges.
