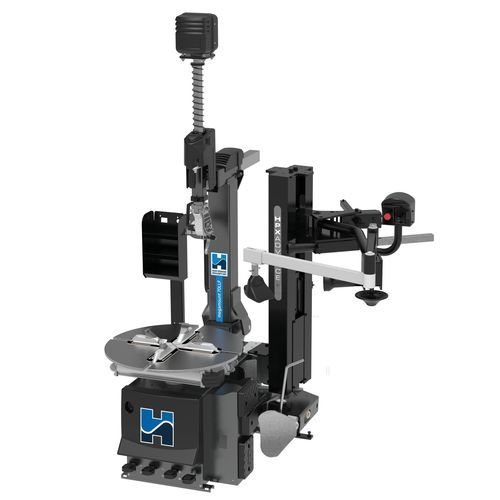

Car tyre changer megamount 70LLF

for automobilesautomaticvertical

Short description
Automatic tyre changer with lever-less system, inverter-controlled main motor and independent auxiliary motor (double helper). Designed for professional workshops to handle rims from 10" to 27" and large-diameter wheels up to 1170 mm.

Features

• 24-inch plate for heavy-duty and large-diameter wheels
• Lever-less bead seating system with adjustable hexagonal bar (41 mm thickness)
• 60 x 60 mm square bar guided by rollers; reinforced vertical column and base
• Bead breaker shovel working range 17"; max opening 432 mm
• Infinitely variable inverter drive: 0–16 rpm; motor configuration 1.5 kW inverter + 0.75 kW auxiliary motor
• High max torque: 1200 Nm; clamping cylinder diameter 80 mm
• External clamping range: 10"–24"; internal clamping range: 12"–27"
• Max wheel diameter: 1170 mm / 46"; max wheel width: 431 mm / 17"
• Pedal unit with row-mounted pedals including rotary control; detachable for servicing
• Replaceable external clamping claws; recommended operating pressure 8–10 bar

Technical data
External clamping range: 10" ÷ 24"
Inside clamping range: 12" ÷ 27"
Max. wheel diameter: 1170 mm / 46"
Max. wheel width: 431 mm / 17"
Working range: 10" ÷ 27"
Motor: 1.5 kW inverter + 0.75 kW motor, 1Ph 200/265V – 50/60 Hz
Max. torque: 1200 Nm
Speed of rotation: 0 – 16 rpm
Height of the plate from the floor: 670 mm
Bead breaker max. opening: 432 mm / 17"
Bead unseating force on shovel (10 bar): 15000 N
Operating pressure (recommended): 8-10 bar

Applications

• Automotive workshops, tyre shops and fleet maintenance facilities
• Suitable for passenger cars, SUVs, light commercial vehicles and large-diameter wheels

Options & maintenance

• Detachable pedal unit for easy servicing
• External clamping claws replaceable to reduce downtime
• Routine maintenance: check pneumatic pressure, replace wear parts as needed
