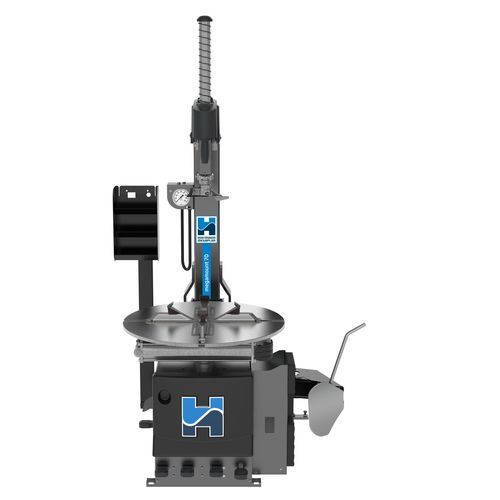

Car tire changer megamount 70

automaticverticalelectric

Short description
Fully automatic tyre changer for passenger and commercial wheels, featuring a 24" turntable and infinitely variable inverter control for precise rotation speed management.

Description

• 24-inch turntable for external clamping up to 24"
• 60 x 60 mm square bar guided by rollers for stable tool support
• Hexagonal bar thickness 41 mm; adjustable hex bar with vertical column and reinforced base
• Bead breaker shovel working range: 17"
• Cylinder diameter 200 mm; piston 25 mm (as stated)
• Bead breaker working range: 12"/17"
• Pedals arranged in a row including rotary control; pedal unit detachable for servicing
• Infinitely variable inverter: 0–16 rpm for controlled spinning
• Clamping cylinder diameter: 80 mm
• External clamping claws: quick and easy replacement

Technical data
External clamping range: 10"–24"
Internal clamping range: 12"–27"
Maximum wheel diameter: 1170 mm / 46"
Maximum wheel width: 431 mm / 17"
Overall working range: 10"–27"
Motor: 1.5 kW inverter + 0.75 kW motor, single phase 200/265 V – 50/60 Hz
Maximum torque: 1200 Nm
Rotation speed: 0–16 rpm
Height of plate from floor: 670 mm
Bead breaker max. opening: 432 mm / 17"
Bead unseating force on shovel (10 bar): 15000 N
Recommended operating pressure: 8–10 bar

Technical specifications

• Plate diameter: 24"
• Square bar: 60 x 60 mm, roller-guided
• Hexagonal bar thickness: 41 mm; adjustable
• Vertical column with reinforced base
• Bead breaker shovel range: 17"
• Cylinder diameter: 200 mm; piston: 25 mm
• Pedal unit: inline pedals with rotary control; detachable
• Inverter: 0–16 rpm, infinitely variable
• Clamping cylinder diameter: 80 mm
• External clamping range: 10"–24"; Internal: 12"–27"
• Max wheel diameter: 1170 mm / 46"; max width: 431 mm / 17"
• Motor: 1.5 kW (inverter) + 0.75 kW, 1Ph 200/265 V – 50/60 Hz
• Max torque: 1200 Nm
• Bead breaker max opening: 432 mm / 17"; bead unseating force (10 bar): 15000 N
• Recommended working pressure: 8–10 bar
