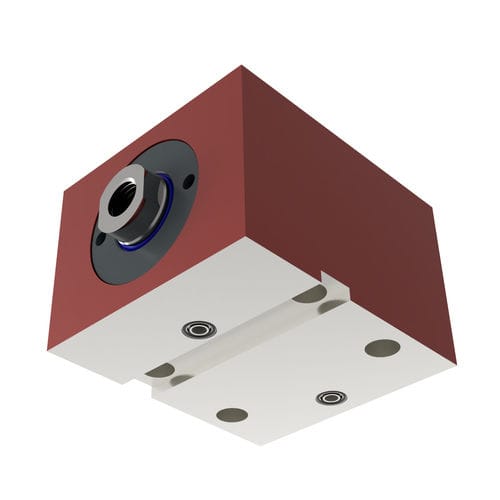

Block cylinder VBL serieshydraulicpistonwith threaded rods
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston, with threaded rods
- Configuration
- double-acting
- Norms
- ISO
- Applications
- industrial, for die-casting applications
- Other characteristics
- compact, block
- Stroke
Max.: 160 mm
(6.299 in)Min.: 5 mm
(0.197 in)- Bore
Max.: 200 mm
(7.87 in)Min.: 16 mm
(0.63 in)- Pressure
Max.: 500 bar
(7,251.89 psi)Min.: 80 bar
(1,160.3 psi)- Force
Max.: 157,079 daN
Min.: 98 daN
- Speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 240 °C
(464 °F)Min.: -20 °C
(-4 °F)
Description
- Power supplies and possible fasteners on each side of the cylinder
- Operating pressure 500 bar
- Bore Ø16 to Ø200 mm
- Seals Iso
- Double seal on rod
