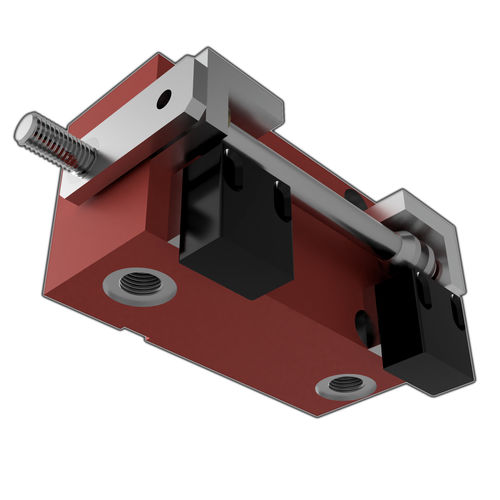

Block cylinder VCE serieshydraulicpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Norms
- ISO
- Other characteristics
- compact, block, with integrated limit switch
- Stroke
Min.: 10 mm
(0.394 in)Max.: 220 mm
(8.661 in)- Bore
Min.: 25 mm
(0.98 in)Max.: 100 mm
(3.94 in)- Pressure
Min.: 80 bar
(1,160.3 psi)Max.: 500 bar
(7,251.89 psi)- Rod diameter
Min.: 16 mm
(1 in)Max.: 56 mm
(2 in)- Force
Min.: 231 daN
Max.: 39,269 daN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 240 °C
(464 °F)
Description
Compact cylinder with mechanical sensors.
Cylinder block with mechanical limit switches
Operating pressure 500 bar
Bore 25 to 100 mm
Seals Iso
Double seal on rod
Race on request every 5 mm
