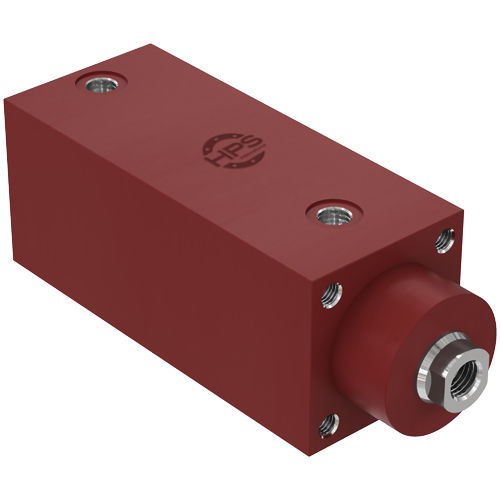

Block cylinder VSP serieshydraulicpistonwith threaded rods
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston, with threaded rods
- Configuration
- double-acting
- Norms
- ISO, CNOMO
- Protection class
- robust
- Other characteristics
- compact, block, high-speed
- Stroke
Max.: 291 mm
(11.457 in)Min.: 12 mm
(0.472 in)- Bore
Max.: 125 mm
(4.92 in)Min.: 25 mm
(0.98 in)- Pressure
Max.: 250 bar
(3,625.94 psi)Min.: 80 bar
(1,160.3 psi)- Rod diameter
Max.: 70 mm
(3 in)Min.: 16 mm
(1 in)- Force
Max.: 30,679 daN
Min.: 231 daN
- Speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 240 °C
(464 °F)Min.: -20 °C
(-4 °F)
Description
Includes new SL Mounting
Compact and fast block cylinder.
It mounts in place of the HVB Series or cylinders complying with the CNOMO standard 05.07.65 to 05.07.70.
It is the ideal compromise between compact, robustness and speed.
- Double acting
- Plug and Play with CNOMO Cylinders
- Working pressure: 250 bar
- Bores Ø25 ... 125 mm
