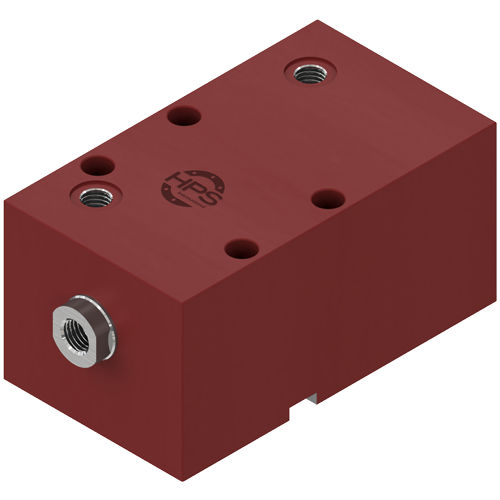

Block cylinder GVCN serieshydraulicpistonISO
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Norms
- ISO
- Protection class
- robust
- Applications
- industrial
- Other characteristics
- for heavy loads, block, heavy-duty, inch-size
- Bore
Min.: 1 in
Max.: 4.94 in
- Pressure
Min.: 1,305 psi
Max.: 7,200 psi
- Rod diameter
Min.: 1 in
Max.: 3 in
- Speed
Min.: 0 ft/s
(0 m/s)Max.: 1.64 ft/s
(0.5 m/s)- Operating Temperature
Min.: -4 °F
(-20 °C)Max.: 464 °F
(240 °C)
Description
GVCN Series now in Inches. Includes new M13 Mounting.
ISO Seals. Robust and fast, ideal for heavy movements.
The GVCN can be used in every application where a well guide movement, speed and stress resistance are needed.
For example the ejection plates in the mold industry.
ISO Seals. Hydraulic cylinders GVCN Series in Inches, Working pressure: 7200 PSI (500 bar), Bores Ø1″ (Ø25mm) ... 4″ 15/16 (125mm)
