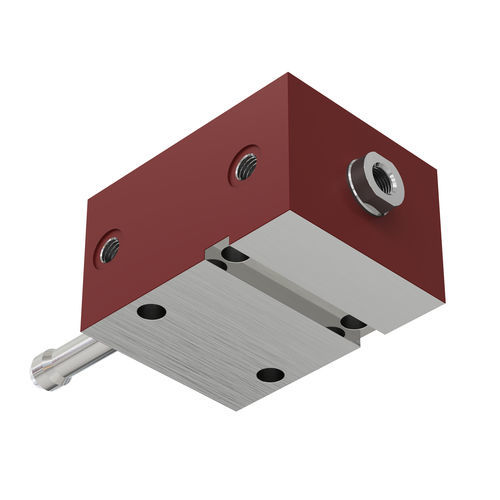

Block cylinder FPA serieshydraulicpistonwith threaded rods
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston, with threaded rods
- Configuration
- double-acting
- Norms
- ISO
- Protection class
- reinforced
- Applications
- industrial, for die-casting applications
- Other characteristics
- compact, block
- Stroke
Min.: 10 mm
(0.394 in)Max.: 100 mm
(3.937 in)- Bore
40 mm, 50 mm, 63 mm, 80 mm, 100 mm
(1.57 in, 1.97 in, 2.48 in, 3.15 in, 3.94 in)- Pressure
Min.: 80 bar
(1,160.3 psi)Max.: 500 bar
(7,251.89 psi)- Rod diameter
22 mm, 28 mm, 36 mm, 45 mm, 56 mm
(1 in, 1 in, 1 in, 2 in, 2 in)- Force
Min.: 701 daN
Max.: 39,269 daN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 240 °C
(464 °F)
Description
Reinforced Compact Hydraulic Cylinders
- Compact cylinder block
- Piston rod monoblock
- Operating pressure 500 bar
- Bore 40 to 100 mm
- Seals Iso
- Double seal on rod
- Race on request every 10 mm
