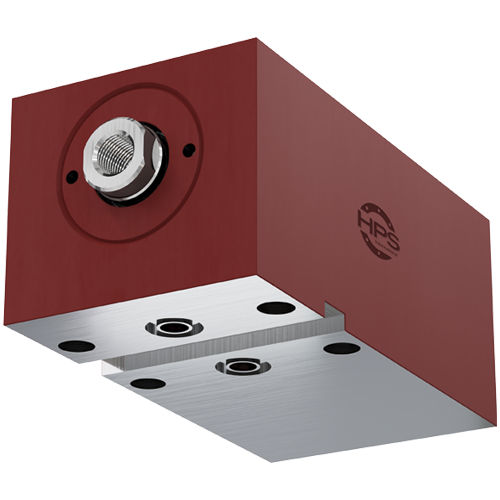

Block cylinder GVCN serieshydraulicpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Norms
- ISO
- Protection class
- robust
- Applications
- industrial
- Other characteristics
- for heavy loads, block, heavy-duty
- Stroke
Max.: 176 mm
(6.929 in)Min.: 5 mm
(0.197 in)- Bore
Max.: 125 mm
(4.92 in)Min.: 25 mm
(0.98 in)- Pressure
Max.: 500 bar
(7,251.89 psi)Min.: 90 bar
(1,305.34 psi)- Rod diameter
Max.: 70 mm
(3 in)Min.: 16 mm
(1 in)- Force
Max.: 61,360 daN
Min.: 261 daN
- Speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 240 °C
(464 °F)Min.: -20 °C
(-4 °F)
Description
Robust and fast, ideal for heavy movements.
The GVCN can be used in every application where a well guide movement, speed and stress resistance are needed.
For example the ejection plates in the mold industry.
Keyway and O-Ring ports with variable position.
ISO Seals.
- Double acting
- Working pressure: 500 bar
- Bores Ø25 ... 125 mm
