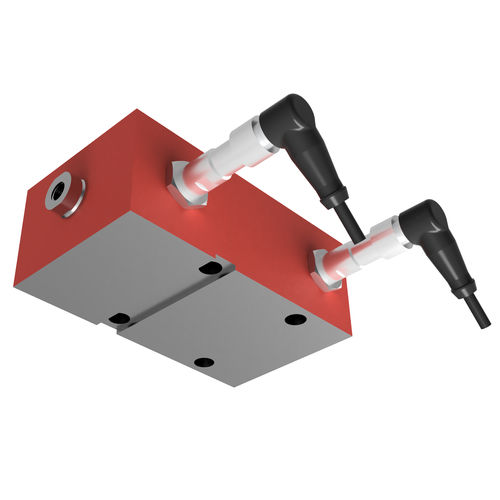

Block cylinder VDI serieshydraulicpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Norms
- ISO
- Applications
- industrial
- Other characteristics
- block, with sensor option
- Stroke
Min.: 10 mm
(0.394 in)Max.: 220 mm
(8.661 in)- Bore
Min.: 25 mm
(0.98 in)Max.: 100 mm
(3.94 in)- Pressure
Min.: 80 bar
(1,160.3 psi)Max.: 500 bar
(7,251.89 psi)- Rod diameter
Min.: 16 mm
(1 in)Max.: 56 mm
(2 in)- Force
Min.: 231 daN
Max.: 39,269 daN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 240 °C
(464 °F)
Description
Bloc cylinder with inductive sensors
Operating pressure 500 bar
Bore 25 to 100 mm
Seals Iso
Double seal on rod
Race on request every 5 mm
