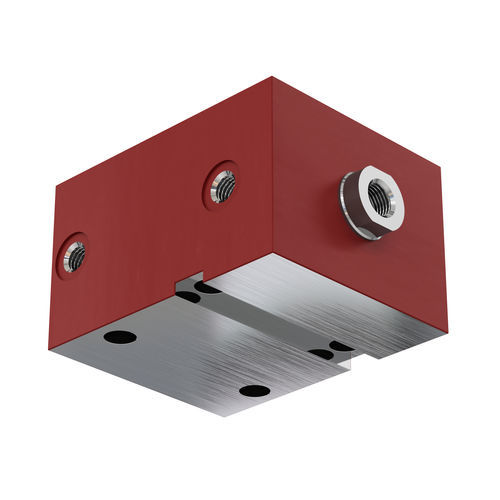

Block cylinder OPC serieshydraulicpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Norms
- ISO
- Other characteristics
- block
- Stroke
Min.: 15 mm
(0.591 in)Max.: 260 mm
(10.236 in)- Bore
Min.: 40 mm
(1.57 in)Max.: 125 mm
(4.92 in)- Pressure
Min.: 80 bar
(1,160.3 psi)Max.: 500 bar
(7,251.89 psi)- Rod diameter
Min.: 22 mm
(1 in)Max.: 90 mm
(4 in)- Force
Min.: 701 daN
Max.: 61,359 daN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 240 °C
(464 °F)
Description
- Operating pressure 500 bar
- Bore 40 to 125 mm
- Seals Iso
- Double seal on rod
- Race on request every 5 mm
