Conventional lathe HU 560x1500-4 VAC NG DRO
horizontalD1-8for small workpieces

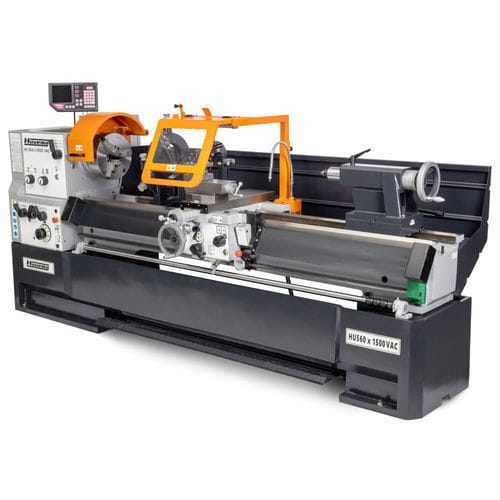

Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 2
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 3
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 4
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 5
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 6
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 7
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 8
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 9
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 10
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 11
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 12
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 13
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 14
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 15
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 16
Conventional lathe - HU 560x1500-4 VAC NG DRO - Huvema B.V. - horizontal / D1-8 / for small workpieces - image - 17
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
D1-8
Applications
for large workpieces, for small workpieces
Diameter

355 mm, 560 mm, 785 mm
(13.98 in, 22.05 in, 30.91 in)

Spindle speed

Max.: 1,600 rpm
(10,053.096 rad.min-1)

Min.: 25 rpm
(157.08 rad.min-1)

Nominal power

7.5 kW
(10.2 hp)

Overall lenght

2,840 mm
(112 in)

Overall width

1,150 mm
(45 in)

Overall height

1,460 mm
(57 in)

Weight

2,985 kg
(6,581 lb)

Description

Product overview
The Huvema PROFI line is an entry-level series of professional workshop lathes designed for ease of use and complete delivery. The PROFI machines are suited for workshops, schools and small-scale production where a reliable workshop lathe is required.

Construction and usability
The machines feature a precision-ground and induction-hardened bed and a robust, stable base. Controls are user-friendly across sizes and the machine is supplied ready-to-use with common accessories.

Model
HU 560x1500-4 VAC NG DRO

Article number
30851

EAN
8718242478502

Included / delivery
  • Self-centering 3-jaw chuck
  • Independent 4-jaw chuck
  • Live centre
  • Fixed tailstock
  • Digital readout (DRO)
  • 4-way tool post
  • Work light
  • Protective guards
  • Coolant system
  • Maintenance tool kit

Technical features / specifications
  • Product line: Huvema PROFI
  • Type / model: HU 560x1500-4 VAC NG DRO
  • Swing over bed: 560 mm
  • Centre distance (between centres): 1500 mm
  • Main spindle bore: 105 mm
  • Motor power: 7.5 kW
  • Speed range: 25 - 1600 rpm
  • Spindle nose: D1-8 / CAMLOCK
  • Spindle taper: MT7
  • Tailstock taper: MT5 (diameter 75 mm)
  • Bed width: 350 mm
  • Machine dimensions (L x W x H): 2840 x 1150 x 1460 mm
  • Weight: 2985 kg
