Conventional lathe HU 1010 BNG-4 DRO
horizontalCamlock D1-5for small workpieces

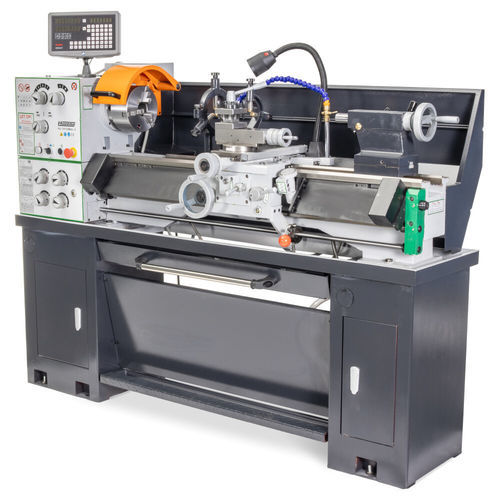

Conventional lathe - HU 1010 BNG-4 DRO - Huvema B.V. - horizontal / Camlock D1-5 / for small workpieces
Conventional lathe - HU 1010 BNG-4 DRO - Huvema B.V. - horizontal / Camlock D1-5 / for small workpieces
Conventional lathe - HU 1010 BNG-4 DRO - Huvema B.V. - horizontal / Camlock D1-5 / for small workpieces - image - 2
Conventional lathe - HU 1010 BNG-4 DRO - Huvema B.V. - horizontal / Camlock D1-5 / for small workpieces - image - 3
Conventional lathe - HU 1010 BNG-4 DRO - Huvema B.V. - horizontal / Camlock D1-5 / for small workpieces - image - 4
Conventional lathe - HU 1010 BNG-4 DRO - Huvema B.V. - horizontal / Camlock D1-5 / for small workpieces - image - 5
Conventional lathe - HU 1010 BNG-4 DRO - Huvema B.V. - horizontal / Camlock D1-5 / for small workpieces - image - 6
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
Camlock D1-5
Applications
for metal, for small workpieces
Other characteristics
with position indicator
Diameter

330 mm
(12.99 in)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 70 rpm
(439.823 rad.min-1)

Nominal power

1.5 kW
(2 hp)

Overall lenght

1,800 mm
(71 in)

Overall width

650 mm
(26 in)

Overall height

1,400 mm
(55 in)

Weight

600 kg
(1,323 lb)

Description

Product description
The Huvema PROFI series of lathes is a line of professional conventional lathes designed for workshops and small production. Easy to operate and supplied complete, the PROFI series combines straightforward controls and a digital readout for improved machining accuracy. The 330 x 1000 mm specification defines the turning capacity and workpiece length supported by this model.

Applications
  • General metalworking and maintenance workshops
  • Small-series production and job-shop turning
  • Prototyping and precision machining of steel, aluminium and plastics


Category
  • Machine tools
  • Lathes
  • Conventional lathes
  • Professional lathes


Key features
  • Brand: Huvema
  • Series: PROFI
  • Type: Conventional lathe
  • Turning capacity / dimensions: 330 x 1000 mm
  • Display: Digital readout (DRO)
  • Article ID: 15670
