Manual lathe HU 560x2000-4 VAC NG DRO
horizontal2-axisD1-8

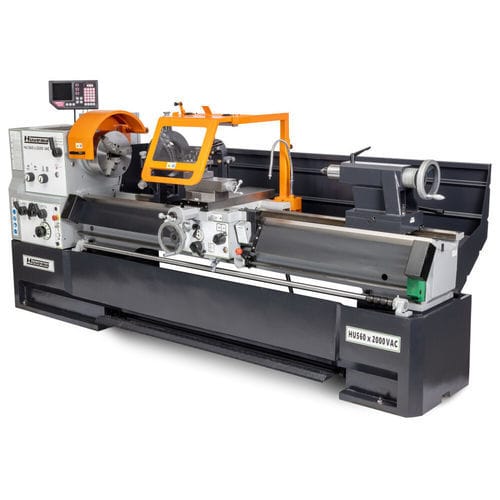

Manual lathe - HU 560x2000-4 VAC NG DRO - Huvema B.V. - horizontal / 2-axis / D1-8
Manual lathe - HU 560x2000-4 VAC NG DRO - Huvema B.V. - horizontal / 2-axis / D1-8
Manual lathe - HU 560x2000-4 VAC NG DRO - Huvema B.V. - horizontal / 2-axis / D1-8 - image - 2
Manual lathe - HU 560x2000-4 VAC NG DRO - Huvema B.V. - horizontal / 2-axis / D1-8 - image - 3
Manual lathe - HU 560x2000-4 VAC NG DRO - Huvema B.V. - horizontal / 2-axis / D1-8 - image - 4
Manual lathe - HU 560x2000-4 VAC NG DRO - Huvema B.V. - horizontal / 2-axis / D1-8 - image - 5
Manual lathe - HU 560x2000-4 VAC NG DRO - Huvema B.V. - horizontal / 2-axis / D1-8 - image - 6
Add to favorites
Compare this product

Characteristics

Control type
manual
Spindle orientation
horizontal
Number of axes
2-axis
Spindle mount
D1-8
Applications
for large workpieces, for small parts production
Performance
precision
Diameter

355 mm, 560 mm, 785 mm
(13.98 in, 22.05 in, 30.91 in)

Spindle speed

Min.: 25 rpm
(157.08 rad.min-1)

Max.: 1,600 rpm
(10,053.096 rad.min-1)

Nominal power

7.5 kW
(10.2 hp)

Overall lenght

3,340 mm
(131 in)

Overall width

1,150 mm
(45 in)

Overall height

1,460 mm
(57 in)

Weight

2,560 kg
(5,644 lb)

Description

Product overview
The Huvema PROFI lathe series is an entry-level professional range from Huvema. Easy to operate, delivered complete and cost-effective. This model features a 560 x 2000 mm capacity, digital readout (DRO) and variable speed control. It is designed for workshops where high-volume production is not required and offers a precision-ground, induction-hardened bed for stability. Machines are supplied ready-to-use and comply with applicable CE directives.

Standard equipment
  • 3-jaw self-centering chuck
  • 4-jaw independent chuck
  • Jaw chuck
  • Fixed steady rest
  • Follow steady rest
  • Digital readout (DRO)
  • 4-position toolpost
  • Work lamp
  • Protective covers
  • Coolant system
  • Tool kit for machine maintenance
  • Variable speed drive


Options
  • Alternative chucks
  • Quick-change toolpost sets
  • Turning centre attachments
  • Turning tools
  • Drilling head


Technical characteristics / specifications
  • Motor power: 7.5 kW
  • Spindle speed range: 25 - 1600 rpm
  • Voltage: 400 V
  • Weight: 2560 kg
  • Distance between centres: 2000 mm
  • Spindle bore: 105 mm
  • Metric thread range: 0.2 - 14 mm
  • Capacity over bed: 560 mm
  • Capacity over cross slide: 355 mm
  • Cross slide travel: 316 mm
  • Top slide travel: 130 mm
  • Centre height: 280 mm
  • Gap: 785 mm
  • Bed width: 350 mm
  • Longitudinal feed range: 0.059 - 1.646 mm/rev
  • Cross feed range: 0.020 - 0.0573 mm/rev
  • Inch thread range: 2 - 112 TPI
  • Tailstock quill diameter: 75 mm
  • Tailstock quill travel: 180 mm
  • Tailstock taper: MT5
  • Spindle nose: D1-8 / CAMLOCK
  • Number of speeds: 35
  • Main spindle taper: MT7
  • Pitch diameter range: 4 - 112 DP
  • Module thread range: 0.1 - 7 MOD
  • Machine dimensions: 3340 x 1150 x 1460 mm
  • Packed dimensions: 3400 x 1150 x 1740 mm
