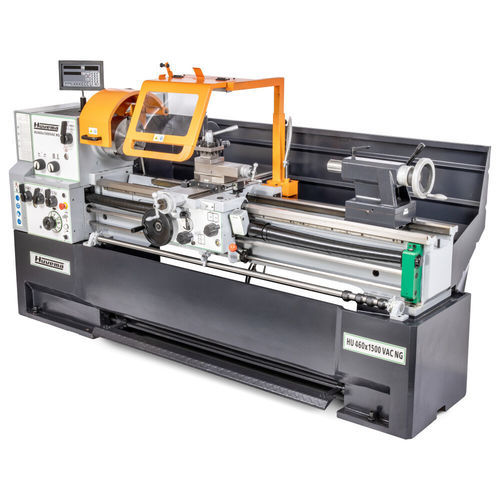

Conventional lathe HU 460x2000-4 VAC NG DROhorizontalD1-8for small parts production
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Spindle mount
- D1-8
- Applications
- for large workpieces, for small parts production
- Diameter
270 mm, 460 mm, 690 mm
(10.63 in, 18.11 in, 27.17 in)- Spindle speed
Min.: 30 rpm
(188.496 rad.min-1)Max.: 2,000 rpm
(12,566.371 rad.min-1)- Bar capacity
80 mm
(3 in)- Axe X
Min.: 285 mm
(11 in)Max.: 285 mm
(11 in)- Axe Z
Min.: 2,000 mm
(79 in)Max.: 2,000 mm
(79 in)- Nominal power
5.5 kW
(7.5 hp)- Overall lenght
3,250 mm
(128 in)- Overall width
1,080 mm
(43 in)- Overall height
1,370 mm
(54 in)- Weight
2,420 kg
(5,335 lb)
Description
Overview
The Huvema PROFI series is an entry-level range of professional lathes designed for conventional turning tasks in workshops and small-series production. This Huvema PROFI 460 x 2000 mm model features a precision ground, induction-hardened bed, digital readout and continuously variable speed for flexible machining.
Standard equipment
Optional accessories
Technical specifications
The Huvema PROFI series is an entry-level range of professional lathes designed for conventional turning tasks in workshops and small-series production. This Huvema PROFI 460 x 2000 mm model features a precision ground, induction-hardened bed, digital readout and continuously variable speed for flexible machining.
Standard equipment
- Self-centering 3-jaw chuck
- Independent 4-jaw chuck
- Adjusting plate
- Stationary steady
- Travelling steady
- Digital readout
- 4-way tool post for turning tools
- Work lamp
- Protective covers
- Cooling system
- Machine maintenance tool set
- Variable speed control
Optional accessories
- Alternative chucks
- Quick-change tool post sets
- Turning centre attachment
- Turning and cutting tools
- Drill head
Technical specifications
- Swing over bed: 460 mm
- Distance between centres: 2000 mm
- Hole through spindle: 80 mm
- Engine power: 5.5 kW
- Voltage: 400 V
- Swing over cross slide: 270 mm
- Center height: 230 mm
- Weight: 2420 kg
- Swing in gap: 690 mm
- Width of bed: 300 mm
- Threading metric: 0.1 - 14 mm
- Speed range: 30 - 2000 rpm
- Spindle nose: D1-8 / CAMLOCK
- Number of ranges: 2
- Movement tail stock taper: 130 mm
- Tail stock taper: MK4
- Diameter tail stock taper: 60 mm
- Taper of main spindle: MK6
- Cross travel support: 285 mm
- Top slide travel: 128 mm
- Threading inch: 2 - 112 inch
- Diameter pitch: 4 - 112 DP
- Longitudinal feed: 0.031 - 1.7 mm
- Cross feed range: 0.014 - 0.784 mm
- Module pitch: 0.1 - 7 MOD
- Machine dimensions: 3250 x 1080 x 1370 cm
- Packaging dimensions: 3300 x 1130 x 1620 cm
