Conventional lathe HU 530x1500-4 VAC Topline DRO
horizontalD1-8high-precision

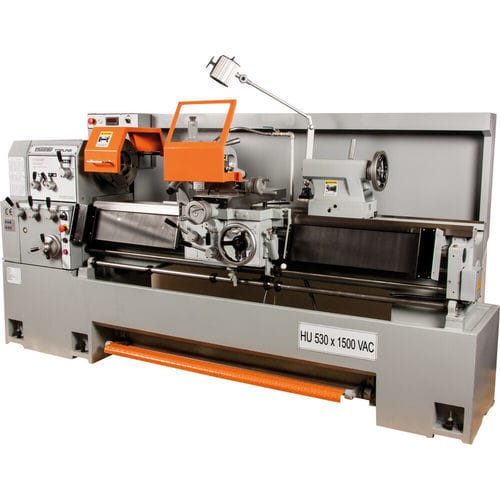

Conventional lathe - HU 530x1500-4 VAC Topline DRO - Huvema B.V. - horizontal / D1-8 / high-precision
Conventional lathe - HU 530x1500-4 VAC Topline DRO - Huvema B.V. - horizontal / D1-8 / high-precision
Conventional lathe - HU 530x1500-4 VAC Topline DRO - Huvema B.V. - horizontal / D1-8 / high-precision - image - 2
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
D1-8
Performance
high-precision, high-rigidity
Diameter

330 mm, 520 mm, 740 mm
(12.99 in, 20.47 in, 29.13 in)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 40 rpm
(251.327 rad.min-1)

Nominal power

7.5 kW
(10.2 hp)

Overall lenght

2,650 mm
(104 in)

Overall width

810 mm
(32 in)

Overall height

1,250 mm
(49 in)

Weight

2,135 kg
(4,707 lb)

Description

Description
Huvema TOPLINE lathes are designed for industrial workshops that require repeatable precision and long-term stability. The HU 530x1500-4 VAC Topline DRO combines a MEEHANITE cast-iron bed and robust components to deliver consistent turning performance for general and precision machining.

Construction and materials
  • MEEHANITE cast-iron bed for improved rigidity and wear resistance
  • Beds inductively hardened and ground for long-term accuracy
  • Cross spindle running through an oil bath for extended life
  • Phosphor-bronze nuts to reduce wear
  • Triple support with SKF bearings for high stability and load capacity


Standard equipment included
  • Self-centering 3-jaw chuck
  • Stationary steady
  • Travelling steady
  • 4-way tool post for turning tools
  • Worklight
  • Protective covers
  • Cooling system
  • Variable speed
  • Digital readout (DRO)


Optional accessories
  • Independent 4-jaw chuck or alternative chucks
  • Live centre
  • Turning tools
  • Drill head


Technical specifications
  • Reference article: 30628
  • Model: HU 530x1500-4 VAC Topline DRO
  • EAN: 8718242079181
  • Series: TOPLINE
  • Dimensions (title): 530x1500 mm
  • Distance between centres: 1500 mm
  • Swing over bed: 520 mm
  • Center height: 260 mm
  • Cross travel support: 275 mm
  • Swing over cross slide: 330 mm
  • Swing in gap: 740 mm
  • Width of bed: 300 mm
  • Engine power: 7.5 kW
  • Hole through spindle: 80 mm
  • Number of speed ranges: 2
  • Speed range: 40-2000 rpm
  • Drive: variable speed
  • Readout: digital (DRO)
  • Construction: MEEHANITE cast-iron bed; beds inductively hardened and ground
  • Spindle: oil-bath cross spindle
  • Nuts: phosphor bronze
  • Bearings: triple support with SKF bearings
  • Stock status: Temporarily out of stock
  • Price: Price on request
