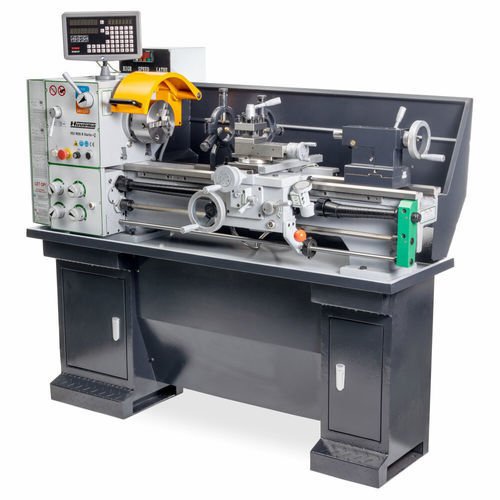

Conventional lathe HU 900 Vario-2 DRO
horizontalCamlock D1-4

Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 2
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 3
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 4
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 5
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 6
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 7
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 8
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 9
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 10
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 11
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 12
Conventional lathe - HU 900 Vario-2 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 13
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
Camlock D1-4
Diameter

300 mm
(11.81 in)

Spindle speed

Max.: 2,200 rpm
(13,823.008 rad.min-1)

Min.: 60 rpm
(376.991 rad.min-1)

Nominal power

1.5 kW
(2 hp)

Overall lenght

1,600 mm
(63 in)

Overall width

730 mm
(29 in)

Overall height

1,160 mm
(46 in)

Weight

450 kg
(992 lb)

Description

Description
Workshop metal lathe designed for professional and serious hobby use. Hardened and ground bed and gear wheels with oil-bath lubrication. Safety interlock prevents simultaneous engagement of longitudinal and cross feeds. Fitted with emergency stop and thermal cut-out. Variable speed via inverter and integrated digital readout for precise machining.

Accessories supplied
  • 3-jaw chuck 160 mm
  • 4-jaw chuck 200 mm
  • Fixed and travelling steady
  • 2 centres
  • Gear wheel set
  • Chuck plate
  • Tool holder
  • Including base


Properties
  • Digital readout
  • Removable saddle
  • Adjustable guideways
  • Fixed and travelling steady
  • Includes base
  • Also available in combined package: 88803


Technical specifications
  • Swing over bed: 300 mm
  • Distance between centres: 910 mm
  • Spindle bore (hole through spindle): 38 mm
  • Motor power: 1.5 kW
  • Voltage: 230 V
  • Swing over cross slide: 178 mm
  • Center height: 150 mm
  • Weight: 450 kg
  • Swing in gap: 430 mm
  • Width of bed: 180 mm
  • Threading (metric): 0.4 - 7 mm
  • Speed range: 60 - 2200 rpm
  • Spindle nose: D1-4 / CAMLOCK
  • Number of speed ranges: 2
  • Tailstock quill travel: 100 mm
  • Tailstock taper: MT3
  • Tailstock quill diameter: 32 mm
  • Main spindle taper: MT5
  • Cross slide travel/support: 175 mm
  • Manufacturer: Huvema
  • Product ID: 15669
