Conventional lathe HU 460x1500-4 NG DRO
horizontalD1-84 tools

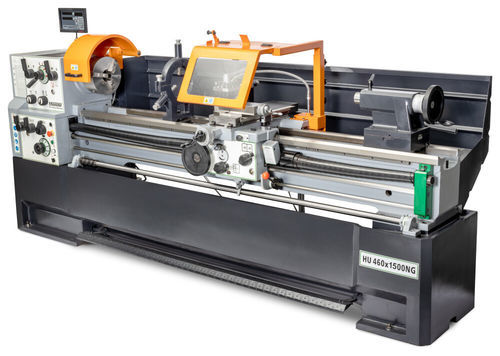

Conventional lathe - HU 460x1500-4 NG DRO - Huvema B.V. - horizontal / D1-8 / 4 tools
Conventional lathe - HU 460x1500-4 NG DRO - Huvema B.V. - horizontal / D1-8 / 4 tools
Conventional lathe - HU 460x1500-4 NG DRO - Huvema B.V. - horizontal / D1-8 / 4 tools - image - 2
Conventional lathe - HU 460x1500-4 NG DRO - Huvema B.V. - horizontal / D1-8 / 4 tools - image - 3
Conventional lathe - HU 460x1500-4 NG DRO - Huvema B.V. - horizontal / D1-8 / 4 tools - image - 4
Conventional lathe - HU 460x1500-4 NG DRO - Huvema B.V. - horizontal / D1-8 / 4 tools - image - 5
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
D1-8
Number of tool stations
4 tools
Performance
precision
Diameter

270 mm, 460 mm, 690 mm
(10.63 in, 18.11 in, 27.17 in)

Spindle speed

Min.: 25 rpm
(157.08 rad.min-1)

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Nominal power

5.5 kW
(7.5 hp)

Overall lenght

2,750 mm
(108 in)

Overall width

1,080 mm
(43 in)

Overall height

1,370 mm
(54 in)

Description

Product description
The Huvema PROFI line of lathes is Huvema's entry-level series of professional lathes. Designed for workshop use, the PROFI models combine a precision-ground, induction-hardened bed with a robust base to ensure stable machining. Machines are simple to operate and supplied complete with standard accessories, making them suitable for workshops, training centres and small industrial runs.

Product information
  • Self-centring 3-jaw chuck
  • Independent 4-jaw chuck
  • Adjusting plate
  • Fixed steady rest
  • Live steady rest
  • Digital readout (DRO)
  • 4-way tool post for turning tools
  • Machine lighting
  • Protective covers
  • Cooling system
  • Tool set for machine maintenance


Optional
  • Other chuck plates
  • Quick-change tool holder sets
  • Rotating centre
  • Turning tools
  • Drill chuck


Manufacturer specifications (table)
  • Article number: 30806
  • Model: HU 460x1500-4 NG DRO
  • EAN: 8718242585859
  • Swing over bed: 460 mm
  • Distance between centres: 1500 mm
  • Hole through spindle: 80 mm
  • Engine power: 5.5 kW
  • Voltage: 400 V
  • Swing over cross slide: 270 mm
  • Center height: 230 mm
  • Swing in gap: 690 mm
  • Width of bed: 300 mm
  • Threading metric: 0.1 - 14 mm
  • Speed range: 25 - 2000 rpm
  • Spindle nose: D1-8 / CAMLOCK
  • Number of revs (gears): 12
  • Tailstock quill travel: 130 mm
  • Tailstock quill taper: MT4
  • Tailstock quill diameter: 60 mm
  • Main spindle taper: MT6
  • Cross travel (compound): 285 mm
  • Top slide travel: 128 mm
  • Threading (inch): 2 - 112 TPI
  • Diameter pitch: 4 - 112 dP
  • Longitudinal feed: 0.031 - 1.7 mm/rev
  • Cross feed range: 0.014 - 0.784 mm/rev
  • Module pitch: 0.1 - 7 MOD
  • Machine dimensions: 2750 x 1080 x 1370 mm
  • Packaging dimensions: 2800 x 1120 x 1620 mm
