Conventional lathe HU 360x750-4 VAC Topline DRO
horizontalCamlock D1-4

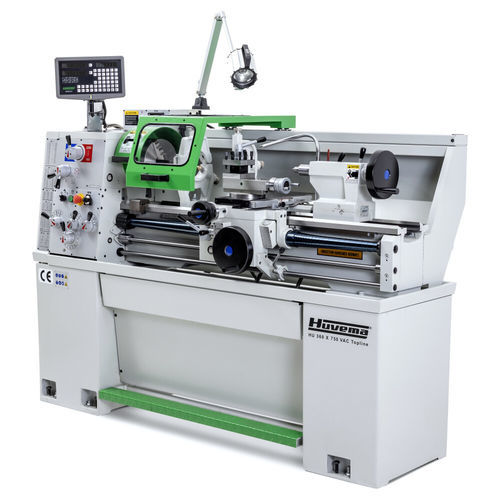

Conventional lathe - HU 360x750-4 VAC Topline DRO - Huvema B.V. - horizontal / Camlock D1-4
Conventional lathe - HU 360x750-4 VAC Topline DRO - Huvema B.V. - horizontal / Camlock D1-4
Conventional lathe - HU 360x750-4 VAC Topline DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 2
Conventional lathe - HU 360x750-4 VAC Topline DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 3
Conventional lathe - HU 360x750-4 VAC Topline DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 4
Conventional lathe - HU 360x750-4 VAC Topline DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 5
Conventional lathe - HU 360x750-4 VAC Topline DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 6
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
Camlock D1-4
Diameter

220 mm, 356 mm, 515 mm
(8.66 in, 14.02 in, 20.28 in)

Spindle speed

Max.: 2,200 rpm
(13,823.008 rad.min-1)

Min.: 30 rpm
(188.496 rad.min-1)

Nominal power

2.2 kW
(3 hp)

Weight

700 kg
(1,543 lb)

Description

Overview
The TOPLINE range of lathes from Huvema is intended for general metal turning tasks in workshops, covering both routine turning and precision operations that require straightforward setup and control.

Product name
  • Title: Lathe machine 360x750 mm with variable speed
  • Brand: Huvema
  • Series: TOPLINE
  • Dimensions (swing x between centres): 360 x 750 mm
  • Speed: variable
  • Article id: 30621

Features
  • Swing over bed: 360 mm
  • Distance between centres: 750 mm
  • Variable speed drive
  • Designed for turning of metal components

Technical specifications
  • Article id: 30621
  • Swing over bed: 360 mm
  • Distance between centres: 750 mm
  • Variable speed: yes
  • Series: TOPLINE
  • Brand: Huvema

Applications
  • General workshop turning
  • Prototyping and small-series production
  • Maintenance and repair workshops

Options & accessories
  • Jaw chucks and faceplates
  • Steady rests and follow rests
  • Tool posts and cutting tools
