Conventional lathe HU 900 A-4 DRO
horizontalCamlock D1-4

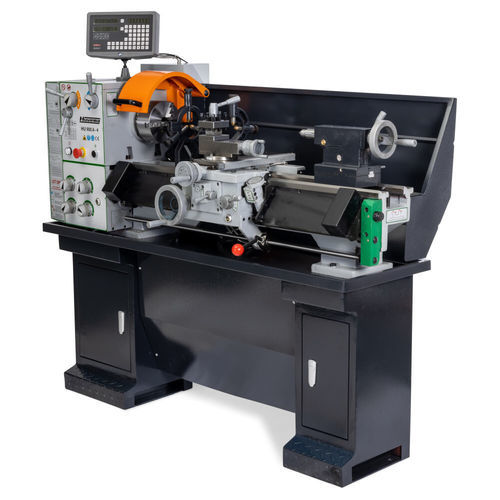

Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 2
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 3
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 4
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 5
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 6
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 7
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 8
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 9
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 10
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 11
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 12
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 13
Conventional lathe - HU 900 A-4 DRO - Huvema B.V. - horizontal / Camlock D1-4 - image - 14
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
Camlock D1-4
Diameter

178 mm, 300 mm, 430 mm
(7.01 in, 11.81 in, 16.93 in)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 60 rpm
(376.991 rad.min-1)

Bar capacity

38 mm
(1 in)

Nominal power

1.1 kW
(1.5 hp)

Overall lenght

1,600 mm
(63 in)

Overall width

730 mm
(29 in)

Overall height

1,160 mm
(46 in)

Weight

450 kg
(992 lb)

Description

Description
Workshop lathe for professional and hobby use. The bed and gear wheels are hardened and ground and run in an oil bath. The machine includes safety features to prevent simultaneous engagement of longitudinal and cross feed, an emergency stop and a thermal cut-out. Supplied with 3-jaw and 4-jaw chucks, fixed and travelling steady, centres, gear set, chuck plate and a tool holder. Right- and left-hand rotation possible.

Properties
  • Digital readout
  • Removable saddle
  • Adjustable guideways
  • Fixed and travelling steady
  • 3-jaw chuck 160 mm
  • 4-jaw chuck 200 mm
  • Tool holder (four-way)
  • Included base
  • Emergency stop and thermal cut-out
  • Gear wheel oil-bath lubrication
  • Hardened and ground bed and gears
  • Prevention of simultaneous engagement of longitudinal and cross feed
  • Reversible (right/left) rotation
  • Optional: quick-change tool post (art.no. 20121006)

Included accessories
  • 3-jaw chuck (160 mm)
  • 4-jaw chuck (200 mm)
  • Fixed steady
  • Travelling steady
  • 2 centres
  • Gear wheel set
  • Chuck plate
  • Tool holder
  • Base

Technical specifications
  • Swing over bed: 300 mm
  • Distance between centres: 910 mm
  • Hole through spindle: 38 mm
  • Engine power: 1.1 kW
  • Voltage: 400 V
  • Swing over cross slide: 178 mm
  • Center height: 150 mm
  • Weight: 450 kg
  • Swing in gap: 430 mm
  • Width of bed: 180 mm
  • Threading metric: 0.4 - 7 mm
  • Speed range: 60 - 2000 rpm
  • Spindle nose: D1-4 / CAMLOCK
  • Number of speeds: 18
  • Tailstock quill travel: 100 mm
  • Tailstock quill taper: MT3
  • Tailstock quill diameter: 32 mm
  • Main spindle taper: MT5
  • Cross travel support: 160 mm
  • Top slide travel: 76 mm
  • Threading inch: 4 - 56 TPI
  • Longitudinal feed: 0.052 - 1.392 mm/rev
  • Cross feed range: 0.014 - 0.38 mm/rev
  • Machine dimensions (L x W x H): 1600 x 730 x 1160 mm
  • Packaging dimensions: 1600 x 740 x 1400 mm
