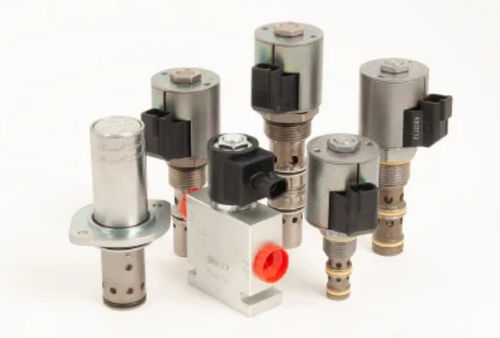

Cartridge valve FRR10-40Ahydraulicregulatingscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- cartridge
- Operation
- hydraulic
- Function
- regulating
- Body
- screw-in, manifold
- Applications
- industrial
- Associated function
- expansion
- Other characteristics
- compact
- DN
64.1 mm
(2.524 in)- Pressure
207 bar, 276 bar
(3,002.3 psi, 4,003 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 204 °C
(399 °F)- Flow rate
Min.: 3 l/min
(0.79 us gal/min)Max.: 19 l/min
(5.02 us gal/min)
Description
The frr10-40 is a screw in, cartridge type, combination valve including a fixed orifice, pressure compensated, priority type flow regulator and a pressure relief valve.
Operation
With inlet at port 1 and ports 4 and 2 connected to tank, the valve maintains a constant flow rate from port 3 regardless of pressure variations at port 3.
Features
Compact size.
Two valve functions in one, industry-common cavity.
Efficient - FR portion is vented.
Quiet, modulated response.
Hardened parts for long life.
