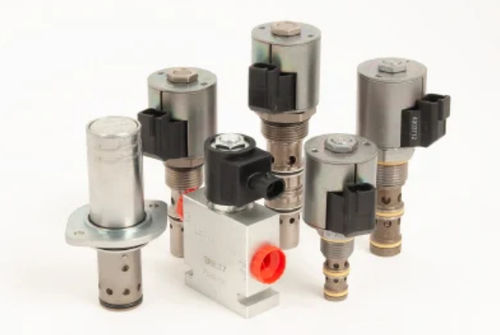

Direct-operated solenoid valve SVCL10-30

3-waynormally closedhydraulic

SOLENOID CARTRIDGE VALVE POPPET, 3 PORT, NORMALLY CLOSED U.S. PATENT PENDING A solenoid operated, 3 port, normally closed, on/off, poppet-type, screw-in hydraulic cartridge valve designed to function as a load holding or blocking valve in applications requiring low leakage. Operation When de-energized, flow is blocked at all ports. When energized, flow is allowed to pass from port 3 to ports 1 and 2, but will not allow flow from ports 2 and 1 to port 3. Features Continuous-duty rated coil. Hardened precision seat for long life and low leakage. Optional coil voltages and terminations. Efficient wet-armature construction. Cartridges are voltage interchangeable. All ports may be fully pressurized. Unitized, molded coil design. Optional waterproof E-Coils rated up to IP69K. Industry common cavity. Reduce manifold space claim. Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: Maximum Operating Contamination Level: 20/18/14 per ISO 4406 Unit Weight: 0.195 kg (0.43 lb) SVCL10-30 0.204 kg (0.45 lb) SVCL10-30M Internal Wetted Surface Area: 154 cm² (23.9 in²) SVCL10-30 164 cm² (25.4 in²) SVCL10-30M
