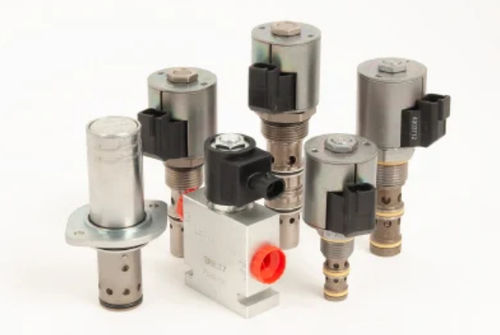

Direct-operated solenoid valve SVCV08-20

2-waynormally closedhydraulic

SOLENOID VALVE POPPET, 2 WAY, NORMALLY CLOSED A solenoid operated, 2-way, pilot operated, poppet-type, normally closed, screw-in, hydraulic cartridge valve designed for low leakage in load holding applications. Operation When de-energized, the SVCV08-20XX blocks flow from port 2 to port 1 and from port 1 to port 2. When energized, the SVCV08-20XX allows flow from port 2 to port 1 and blocks flow from port 1 to port 2. The SVCV08-20XX is designed to fit into the VC08-3 cavity with the normal inlet at cavity port 3 (valve port 2) and the outlet at cavity port 1 (valve port 1). The pressure drop will be substantially higher if cavity port 2 is selected as the alternate outlet port. Features Continuous-duty rated coil. Hardened seat for long life and low leakage. Optional coil voltages and terminations. Cartridges are voltage interchangeable. Manual override option. Optional waterproof E-Coils rated up to IP69K. Industry common cavity – compact size. Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 20/18/14 per ISO 4406 Unit Weight: 0.1 kg (0.21 lb) Base model 0.1 kg (0.23 lb) M and Y option 0.11 kg (0.24 lb) J option Cavity: VC08-3 08-size-3-way Cavities Cartridge Installation Torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil Nut Torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation Restriction: None
