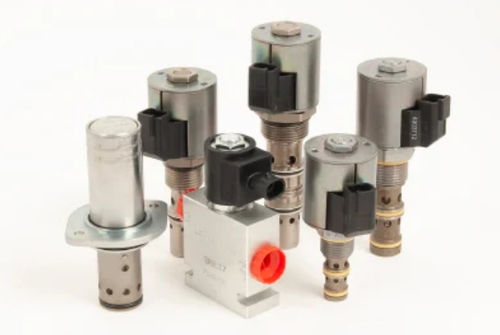

Cartridge relief valve SVRV10-26

pilot-operatedfluidsolenoid-driven

SOLENOID OPERATED SPOOL TYPE RELIEF VALVE U.S. PATENT # 7,137,406 SVRV10-26X is a normally open, solenoid operated, spool type, screw in relief valve. When the coil is activated, the pilot closes the drain flow and the spool closes port 2. In this position, the valve works as a relief valve, relieving flow from port 1 to port 2. The pilot opens when the pressure at port 1 exceeds the set pressure. Pilot flow is discharged to port 2. Features Various pressure ranges. Continuous-duty rated coil. Hardened spool and cage for long life. Optional coil voltages and terminations. Cartridges are voltage interchangeable. Efficient wet-armature construction. Optional waterproof E‑Coils rated up to IP69K. Industry common cavity. Fluids: Mineral based or synthetic with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 18/16/13 per ISO 4406 Unit Weight: 0.19 kg (0.42 lb) Internal Wetted Surface Area: 183 cm² (28.4 in²) Cavity: VC10-2 10-size-2-way Cavities Cartridge Installation Torque: 32.5 to 35.2 N-m (24 to 26 ft-lb) Maximum Allowable Torque: 54.2 N-m (40 ft-lb) Coil Nut Torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation Restriction: None
