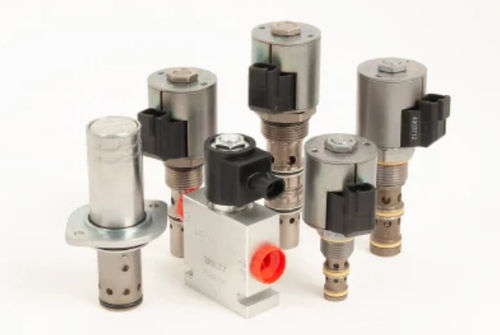

Cartridge valve FRRV10-41
hydraulicflow regulatorscrew-in

cartridge valve
cartridge valve
Add to favorites
Compare this product


Characteristics

Type
cartridge
Operation
hydraulic
Function
flow regulator
Body
screw-in
Associated function
load, expansion
Other characteristics
bypass
DN

63.5 mm
(2.5 in)

Pressure

207 bar, 276 bar
(3,002.3 psi, 4,003 psi)

Flow rate

19 l/min, 38 l/min
(5.02 us gal/min, 10.04 us gal/min)

Description

PRIORITY FLOW REGULATOR WITH BUILT-IN PRESSURE RELIEF VALVE U.S. PATENT No. 7,063,100 The FRRV10-41F is a screw-in, cartridge type, combination valve includes a pressure compensated, non adjustable priority type flow regulator and a pressure relief valve. The valve is intended for use with mineral based or synthetic hydraulic fluids with lubricating properties. Operation It maintains a constant flow rate from port 3 regardless of load pressure changes at priority port 3, or bypass port 2. Features Two valve functions in one, industry-common cavity. Adjustments cannot be backed out of the valve. Relief valve adjustments prohibit relief valve spring from going solid. Quiet, modulated response. Hardened parts for long life.

Catalogs

No catalogs are available for this product.

See all of HYDRAFORCE‘s catalogs
