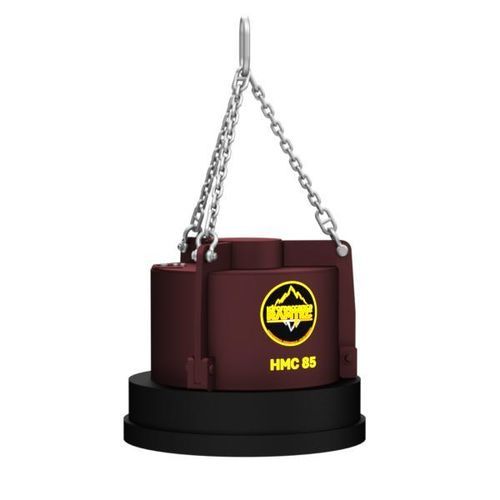

Hydraulic magnetic lifter HMC 85

for sheet metalfor scrap metalferrous scrap

Description
Idromeccanica Ramtec’s hydraulic magnets provide an efficient solution for lifting metal sheets and selecting ferrous material of various shapes and sizes for handling and recycling. The HMC 85 is suited to demolition sites, recycling plants and scrap yards where fast, safe collection of ferrous scraps, bars and metal sheets is required. The unit connects to the excavator hydraulic circuit without any electric cable or external control box.

Mounting

• Compatible carrier: Excavator
• Recommended carrier weight: 10-14 t

USA SPECS
Magnet weight: 1720 lb
Magnet Ø: 33.5 inches
Power: 3.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 10 t
Excavator weight (recommended): 14 t
Required oil flow: 10 – 52 gal/min
Oil pressure: 2610.7 psi
Scrap weight: 551 lb
Plate weight: 7716.2 lb

METRIC SYSTEM
Magnet weight: 780 kg
Magnet Ø: 850 mm
Power: 3.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 10 t
Excavator weight (recommended): 14 t
Required oil flow: 38 – 200 L/min
Oil pressure: 180 bar
Scrap weight: 250 kg
Plate weight: 3500 kg

Features / technical specifications

• Type: Hydraulic magnet (with chain)
• No electric cable installation required; connects to excavator hydraulic hoses
• Equipped with oil flow and pressure control valves
• Includes a quick material release device
• Lower plate made of special wear-resistant steel for increased durability
• Power: 3.5 kW
• Voltage: 220 V
• Required oil flow: 10–52 gal/min (USA) / 38–200 L/min (Metric)
• Oil pressure: 2610.7 psi (USA) / 180 bar (Metric)
• Magnet diameter: 33.5 in / 850 mm
• Magnet weight: 1720 lb / 780 kg
• Recommended carrier excavator weight: 10–14 t
• Scrap handling capacity (indicative): 551 lb / 250 kg
• Plate weight (indicative): 7716.2 lb / 3500 kg
