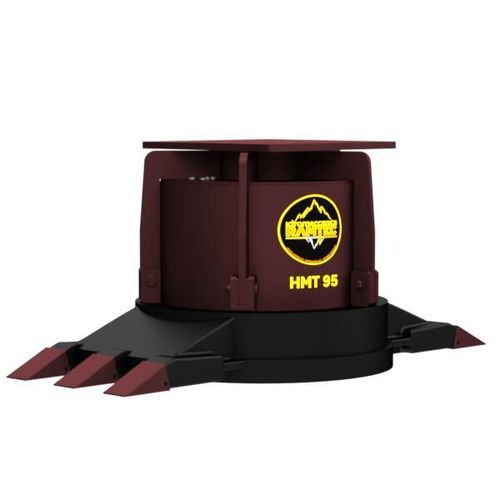

Hydraulic magnetic lifter HMT 95

for sheet metalfor scrap metalhandling

Overview
Idromeccanica Ramtec hydraulic magnets for excavators provide an efficient solution to lift and sort ferrous materials such as metal sheets, bars and scrap. The HMT 95 is designed for demolition, recycling and scrap handling operations and connects directly to the excavator hydraulic circuit without electrical installation. It is equipped with oil flow and pressure control valves, a quick material release device and a wear-resistant lower plate to extend service life. The top plate can be fitted with a top bracket or a quick coupler according to customer needs. The HMT teeth facilitate collection of small rods, sheets and scattered scrap.

Applications

• Demolition sites
• Recycling plants and scrap yards
• Construction site clean-up

Mounting / Compatibility

• Can be mounted on: Excavator
• Excavator weight (minimum): 14 t
• Excavator weight (recommended): 17 t

Technical specifications

• Magnet weight: 2491.2 lb (1130 kg)
• Magnet Ø: 37.4 in (950 mm)
• Power: 4.5 kW
• Voltage: 220 Volt
• Required oil flow: 13 – 52 gal/min (50 – 200 L/min)
• Oil pressure: 2610.7 psi (180 bar)
• Scrap weight (lifting capacity): 771.6 lb (350 kg)
• Plate weight: 7716.2 lb (3500 kg)
