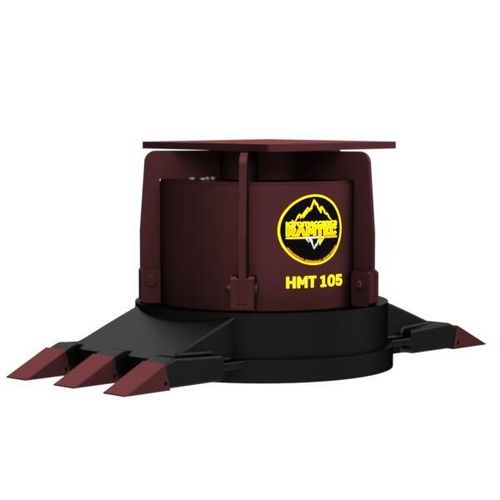

Hydraulic magnetic lifter HMT 105

for metal scrap handlingfor sheet metalfor iron bars

Description
Hydraulic magnets by Idromeccanica Ramtec are designed for handling ferrous materials: lifting metal sheets, collecting scraps, bars and small rods in demolition, recycling and scrap yard operations. The HMT 105 is a hydraulic attachment that connects directly to excavator hydraulic lines without requiring electrical installation. It features flow and pressure control valves, a quick-release device for material drop-off and a wear-resistant lower plate with optional teeth for improved collection of small pieces.

Mounting and use

• Mounting options: top bracket or quick coupler (customizable)
• Connection: direct to excavator hydraulic hoses (no electrical wiring required)
• Operational features: oil flow and pressure control valves; quick material release device; wear-resistant lower plate; toothed lower plate for picking small scraps

USA SPECS

• Magnet weight: 3086.5 lb
• Magnet Ø: 41.3 in
• Power: 5.5 kW
• Voltage: 220 Volt
• Excavator weight (minimum): 19 t
• Excavator weight (recommended): 23 t
• Required oil flow: 18 – 52 gal/min
• Oil pressure: 2610.7 psi
• Scrap weight capacity: 992 lb
• Plate weight capacity: 15432.3 lb

METRIC SYSTEM

• Magnet weight: 1400 kg
• Magnet Ø: 1050 mm
• Power: 5.5 kW
• Voltage: 220 Volt
• Excavator weight (minimum): 19 t
• Excavator weight (recommended): 23 t
• Required oil flow: 70 – 200 L/min
• Oil pressure: 180 bar
• Scrap weight capacity: 450 kg
• Plate weight capacity: 7000 kg

Technical features / specifications

• Model: HMT 105
• Brand: Idromeccanica Ramtec
• Application: lifting metal sheets and selecting ferrous material; demolition sites; recycling plants; scrap yards
• Connection: hydraulic hoses to excavator (no electrical wiring required)
• Control: oil flow and pressure control valves
• Release: quick material release device
• Lower plate: special wear-resistant steel
• Lower plate with teeth: designed to collect small rods, sheets and metal scraps
• Power: 5.5 kW
• Voltage: 220 V
• Magnet diameter: 1050 mm (41.3 in)
• Magnet weight: 1400 kg (3086.5 lb)
• Plate weight capacity: 7000 kg (15432.3 lb)
• Scrap weight capacity: 450 kg (992 lb)
• Required oil flow: 70 – 200 L/min (18 – 52 gal/min)
• Oil pressure: 180 bar (≈2610.7 psi)
• Recommended carrier excavator weight: 19–23 t
