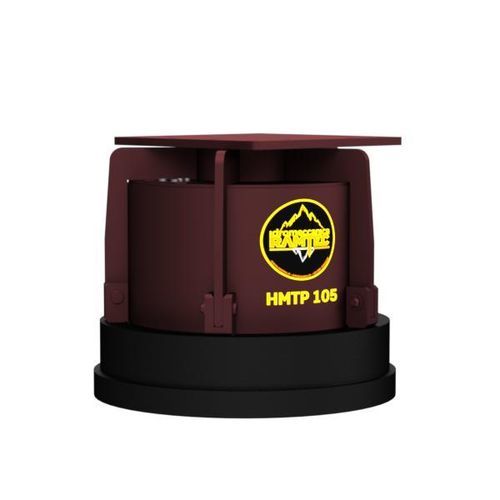

Hydraulic magnetic lifter HMTP 105

for sheet metalhandlingferrous scrap

Description
Idromeccanica Ramtec's hydraulic magnets provide an efficient solution for lifting metal sheets and sorting ferrous materials of varied shapes and sizes for handling and recycling. Designed for demolition sites, recycling plants and scrap yards, the HMTP 105 mounts to excavators without electrical installation — it connects directly to the machine hoses. The unit improves site safety and productivity by quickly collecting ferrous scraps, bars and metal sheets that pose risks to operators and equipment.

USA SPECS
Magnet weight: 2755.8 lb
Magnet Ø: 41.3 inches
Power: 5.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 19 t
Excavator weight (recommended): 23 t
Required oil flow: 18 – 52 gal/min
Oil pressure: 2610.7 psi
Scrap weight: 992 lb
Plate weight: 15432.3 lb

METRIC SYSTEM
Magnet weight: 1250 kg
Magnet Ø: 1050 mm
Power: 5.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 19 t
Excavator weight (recommended): 23 t
Required oil flow: 70 – 200 L/min
Oil pressure: 180 bar
Scrap lifting capacity: 450 kg
Plate weight: 7000 kg

Features

• Ideal for demolition sites, recycling plants and scrap yards
• No electric cable or control box required; connects to excavator hoses
• Equipped with oil flow and pressure control valves
• Quick material release device
• Lower plate made of special wear-resistant steel
• Top plate can be mounted with top bracket or quick coupler

Technical specifications

• Model: HMTP 105
• Magnet weight: 1250 kg (2755.8 lb)
• Magnet Ø: 1050 mm (41.3 inches)
• Power: 5.5 kW
• Voltage: 220 Volt
• Excavator weight: minimum 19 t; recommended 23 t
• Required oil flow: 70 – 200 L/min (18 – 52 gal/min)
• Oil pressure: 180 bar (2610.7 psi)
• Scrap lifting capacity: 450 kg (992 lb)
• Plate weight: 7000 kg (15432.3 lb)
• Mounting: top bracket or quick coupler
• Lower plate: special wear-resistant steel
