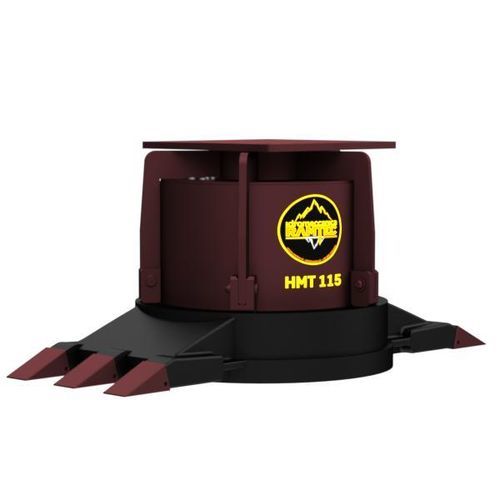

Hydraulic magnetic lifter HMT 115

for sheet metalfor iron barsfor metal scrap handling

Description
The HMT 115 hydraulic magnet by Idromeccanica Ramtec is engineered for efficient lifting, sorting and handling of ferrous materials on demolition sites, recycling plants and scrap yards. It enables fast collection of metal sheets, bars and small scraps, improving site safety and workflow without requiring electrical installation on the carrier.

Mounting

• Suitable carrier: Excavator
• Recommended excavator weight class: 20-25 t

USA SPECS
Magnet weight: 3417 lb
Magnet Ø: 44.5 inches
Power: 6 kW
Voltage: 220 Volt
Excavator weight (minimum): 20 t
Excavator weight (recommended): 25 t
Required oil flow: 21 – 52 gal/min
Oil pressure: 2610.7 psi
Scrap weight: 1433 lb
Plate weight: 24250.8 lb

METRIC SYSTEM
Magnet weight: 1550 kg
Magnet Ø: 1130 mm
Power: 6 kW
Voltage: 220 Volt
Excavator weight (minimum): 20 t
Excavator weight (recommended): 25 t
Required oil flow: 80 – 200 L/min
Oil pressure: 180 bar
Scrap weight: 650 kg
Plate weight: 11000 kg

Technical features / specifications

• Model: HMT 115
• Manufacturer / Brand: Idromeccanica Ramtec
• Type: Hydraulic magnet with top plate and teeth
• Magnet weight: 1550 kg (3417 lb)
• Magnet diameter: 1130 mm (44.5 in)
• Power: 6 kW
• Voltage: 220 Volt
• Recommended carrier: Excavator 20–25 t
• Required oil flow: 80–200 L/min (21–52 gal/min)
• Operating oil pressure: 180 bar (≈2610.7 psi)
• Scrap handling capacity (indicative): 650 kg (1433 lb)
• Plate weight (indicative): 11000 kg (24250.8 lb)
• Features: connects to excavator hydraulic hoses without electrical cables or control box; equipped with oil flow and pressure control valves; quick material release device; lower plate in wear-resistant steel; top plate can be fitted with a top bracket or quick coupler; teeth for collecting small rods, sheets and scraps
