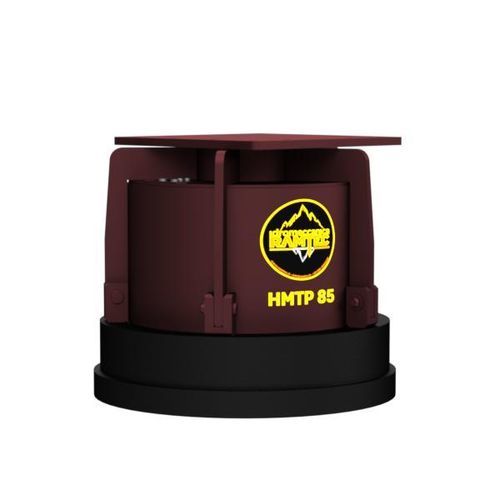

Hydraulic magnetic lifter HMTP 85

for sheet metalfor metal scrap handlingfor scrap handling

Description
Idromeccanica Ramtec hydraulic magnets provide an efficient solution for lifting metal sheets and sorting ferrous materials of various shapes and sizes in demolition, recycling and scrap-handling operations. The HMTP 85 is designed for attachment to excavators (10–14 t) and connects directly to the machine hydraulic hoses — no electrical cable or control box required. The unit includes oil flow and pressure control valves plus a quick material release device. The lower plate is manufactured from a wear-resistant special steel to extend service life and optimize total cost of ownership.

USA SPECS

• Magnet weight: 1940 lb
• Magnet Ø: 33.5 inches
• Power: 3.5 kW
• Voltage: 220 Volt
• Excavator weight (minimum): 10 t
• Excavator weight (recommended): 14 t
• Required oil flow: 10 – 52 gal/min
• Oil pressure: 2610.7 psi
• Scrap weight: 551 lb
• Plate weight: 7716.2 lb

METRIC SYSTEM

• Magnet weight: 880 kg
• Magnet Ø: 850 mm
• Power: 3.5 kW
• Voltage: 220 Volt
• Excavator weight (minimum): 10 t
• Excavator weight (recommended): 14 t
• Required oil flow: 38 – 200 L/min
• Oil pressure: 180 bar
• Scrap weight: 250 kg
• Plate weight: 3500 kg

Technical specifications

• Model: HMTP 85
• Brand: Idromeccanica Ramtec
• Magnet weight: 880 kg (1940 lb)
• Magnet diameter: 850 mm (33.5 in)
• Power: 3.5 kW
• Voltage: 220 V
• Excavator compatibility: 10–14 t (minimum 10 t, recommended 14 t)
• Required oil flow: 38–200 L/min (10–52 gal/min)
• Oil pressure: 180 bar (≈2610.7 psi)
• Scrap handling capacity: ~250 kg (551 lb)
• Plate weight: ~3500 kg (7716.2 lb)
• Construction: lower plate in wear-resistant special steel; top plate version mountable via top bracket or quick coupler
• Hydraulic connection: connects to excavator hoses (no electrical cable or control box required)
• Features: oil flow and pressure control valves; quick material release device
