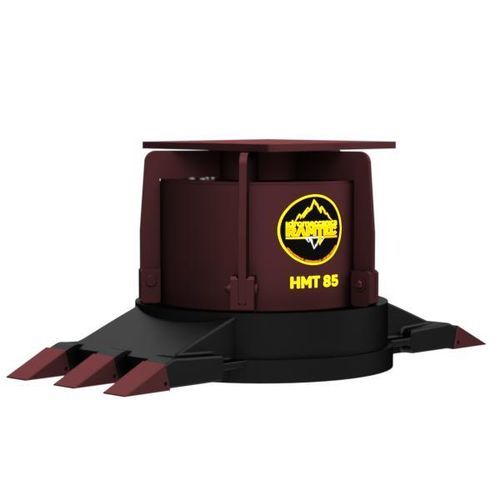

Hydraulic magnetic lifter HMT 85

for scrap metalhandlingfor metal scrap handling

Description
The HMT 85 hydraulic magnet is designed to lift and sort ferrous metal parts of various shapes and sizes. It is intended for demolition sites, recycling facilities and scrap yards to improve handling efficiency and site safety. The unit connects directly to the excavator hydraulic hoses and does not require electrical cable installation or an onboard control box.

USA SPECS
Magnet weight: 2094.4 lb
Magnet Ø: 33.5 inches
Power: 3.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 10 t
Excavator weight (recommended): 14 t
Required oil flow: 10 – 52 gal/min
Oil pressure: 2610.7 psi
Scrap weight: 551 lb
Plate weight: 7716.2 lb

METRIC SYSTEM
Magnet weight: 950 kg
Magnet Ø: 850 mm
Power: 3.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 10 t
Excavator weight (recommended): 14 t
Required oil flow: 38 – 200 L/min
Oil pressure: 180 bar
Scrap weight: 250 kg
Plate weight: 3500 kg

Mounting
Mountable on excavators 10–14 t. Can be fitted by a top bracket or by a quick coupler according to customer requirements to enable faster and more precise movements.

Technical specifications

• Model: HMT 85
• Type: Hydraulic magnet with top plate and teeth
• Magnet weight (USA): 2094.4 lb
• Magnet weight (Metric): 950 kg
• Magnet diameter (USA): 33.5 inches
• Magnet diameter (Metric): 850 mm
• Power: 3.5 kW
• Voltage: 220 Volt
• Excavator weight (minimum): 10 t
• Excavator weight (recommended): 14 t
• Required oil flow (USA): 10 – 52 gal/min
• Required oil flow (Metric): 38 – 200 L/min
• Oil pressure (USA): 2610.7 psi
• Oil pressure (Metric): 180 bar
• Scrap lifting capacity (USA): 551 lb
• Scrap lifting capacity (Metric): 250 kg
• Plate weight (USA): 7716.2 lb
• Plate weight (Metric): 3500 kg
• No electrical cable installation required; connects to excavator hoses
• Equipped with oil flow and pressure control valves
• Quick material release device
• Lower plate made of special wear-resistant steel
• Top plate with teeth for easy collection of small steel rods, sheets and scraps
