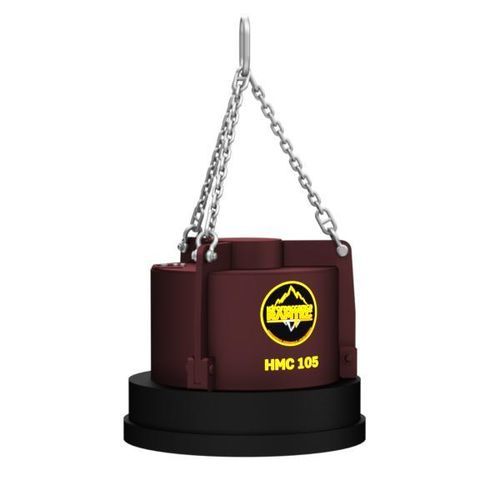

Hydraulic magnetic lifter HMC 105

for sheet metalfor scrap metalfor iron bars

DescriptionIdromeccanica Ramtec hydraulic magnets provide an efficient solution for lifting metal sheets and selecting ferrous materials of various shapes and sizes for handling and recycling. The HMC 105 is designed for demolition sites, recycling plants and scrap yards, enabling fast collection of ferrous scrap, bars and metal sheets to improve site safety and workflow. The unit connects directly to the excavator hydraulic hoses and does not require electric cable installation or an external control box. It includes oil flow and pressure control valves and a quick material release device. The lower plate is manufactured from a wear‑resistant steel to extend service life and protect your investment.

USA SPECSMagnet weight: 2425 lb
Magnet Ø: 41.3 inches
Power: 5.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 19 t
Excavator weight (recommended): 23 t
Required oil flow: 18 – 52 gal/min
Oil pressure: 2610.7 psi
Scrap weight: 992 lb
Plate weight: 15432.3 lb

METRIC SYSTEMMagnet weight: 1100 kg
Magnet Ø: 1050 mm
Power: 5.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 19 t
Excavator weight (recommended): 23 t
Required oil flow: 70 – 200 L/min
Oil pressure: 180 bar
Scrap weight: 450 kg
Plate weight: 7000 kg

Features

• Hydraulic magnet for lifting metal sheets and selecting ferrous material
• No electric cable or external control box required; connects to excavator hydraulic hoses
• Equipped with oil flow and pressure control valves
• Quick material release device for fast unloading
• Lower plate in wear‑resistant steel for extended service life
• Suitable for demolition sites, recycling plants and scrap yards

Technical specifications

• Model: HMC 105
• Magnet weight: 2425 lb / 1100 kg
• Magnet diameter: 41.3 in / 1050 mm
• Power: 5.5 kW
• Voltage: 220 Volt
• Excavator weight recommended range: 19 – 23 t
• Required oil flow: 18 – 52 gal/min (70 – 200 L/min)
• Oil pressure: 2610.7 psi (180 bar)
• Scrap lifting weight: 992 lb / 450 kg
• Plate weight: 15432.3 lb / 7000 kg
• Connection: hydraulic hoses to excavator
• Material: lower plate in wear‑resistant steel
