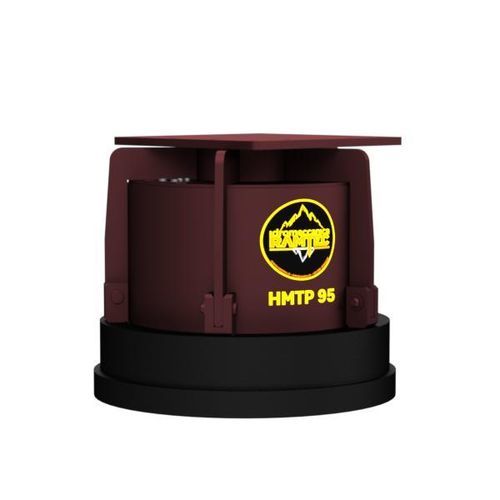

Hydraulic magnetic lifter HMTP 95

handlingfor metal scrap handling

Overview
Idromeccanica Ramtec's hydraulic magnet HMTP 95 is designed to lift and sort ferrous materials of various shapes and sizes on demolition sites, recycling plants and scrap yards. The unit connects directly to the excavator hydraulic hoses; no electric cable or control box is required. The lower plate is made of wear‑resistant steel to extend service life.

Mounting

• You can mount it on: Excavator: 14-17 t

USA SPECS
Magnet weight: 2315 lb
Magnet Ø: 37.4 inches
Power: 4.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 14 t
Excavator weight (recommended): 17 t
Required oil flow: 13 – 52 gal/min
Oil pressure: 2610.7 psi
Scrap weight: 771.6 lb
Plate weight: 7716.2 lb

METRIC SYSTEM
Magnet weight: 1050 kg
Magnet Ø: 950 mm
Power: 4.5 kW
Voltage: 220 Volt
Excavator weight (minimum): 14 t
Excavator weight (recommended): 17 t
Required oil flow: 50 – 200 L/min
Oil pressure: 180 bar
Scrap weight: 350 kg
Plate weight: 3500 kg

Technical specifications

• Model: HMTP 95
• Magnet weight: 1050 kg (2315 lb)
• Magnet diameter: 950 mm (37.4 in)
• Power: 4.5 kW
• Voltage: 220 Volt
• Required oil flow: 50 – 200 L/min (13 – 52 gal/min)
• Oil pressure: 180 bar (2610.7 psi)
• Scrap lifting capacity: 350 kg (771.6 lb)
• Plate weight: 3500 kg (7716.2 lb)
• Carrier recommendation: Excavator 14 t (minimum) – 17 t (recommended)
• Connection: hydraulic hoses (no electric cable or control box required)
• Features: oil flow and pressure control valves; quick material release device; lower plate in special wear‑resistant steel; top plate mountable via top bracket or quick coupler
