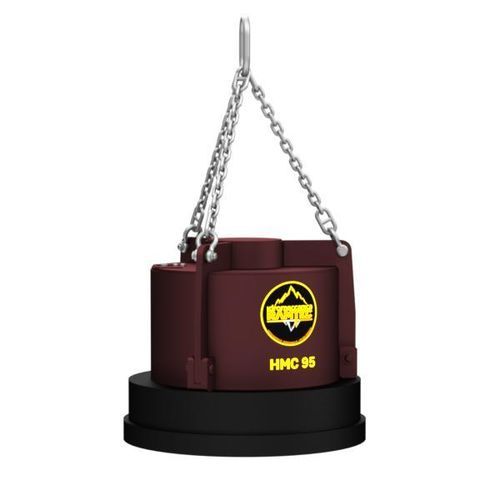

Hydraulic magnetic lifter HMC 95

for sheet metalfor scrap metalhandling

Description
Hydraulic magnets by Idromeccanica Ramtec provide an efficient solution for lifting metal sheets and sorting ferrous material of various shapes and sizes for handling and recycling. The HMC 95 is suitable for use on demolition sites, recycling plants and scrap yards to handle metal scraps and prepare them for further processing. The magnet collects ferrous scraps, bars and metal sheets that may pose hazards to workers, machines and other attachments.

You can mount it on

• Excavator: 14-17 t

USA SPECS

• Magnet weight: 2116 lb
• Magnet Ø: 37.4 inches
• Power: 4.5 kW
• Voltage: 220 Volt
• Excavator weight (minimum): 14 t
• Excavator weight (recommended): 17 t
• Required oil flow: 13 – 52 gal/min
• Oil pressure: 2610.7 psi
• Scrap weight: 771.6 lb
• Plate weight: 7716.2 lb

METRIC SYSTEM

• Magnet weight: 960 kg
• Magnet Ø: 950 mm
• Power: 4.5 kW
• Voltage: 220 Volt
• Excavator weight (minimum): 14 t
• Excavator weight (recommended): 17 t
• Required oil flow: 50 – 200 L/min
• Oil pressure: 180 bar
• Scrap weight: 350 kg
• Plate weight: 3500 kg

Technical specifications

• Type: Hydraulic magnet attachment for excavators
• Mounting range: compatible with 14–17 t excavators
• Connection: hydraulic hoses only (no electric cables or control boxes required)
• Control: oil flow and pressure control valves included
• Release: quick material release device
• Lower plate: special wear-resistant steel for extended life
• Power: 4.5 kW
• Voltage: 220 V
• Required oil flow (USA): 13–52 gal/min
• Required oil flow (Metric): 50–200 L/min
• Oil pressure (USA): 2610.7 psi
• Oil pressure (Metric): 180 bar
• Magnet diameter (USA): 37.4 in
• Magnet diameter (Metric): 950 mm
• Magnet weight (USA): 2116 lb
• Magnet weight (Metric): 960 kg
• Scrap handling capacity (USA): 771.6 lb
• Scrap handling capacity (Metric): 350 kg
• Plate weight (USA): 7716.2 lb
• Plate weight (Metric): 3500 kg
