Swing clamping element QLSW
mechanicalmanualmachining

swing clamping element
swing clamping element
swing clamping element
Add to favorites
Compare this product


Characteristics

Type
mechanical, manual
Applications
machining, workpiece
Other characteristics
steel, swing, cam
Clamping force

Max.: 1.2 kN

Min.: 0.8 kN

Description

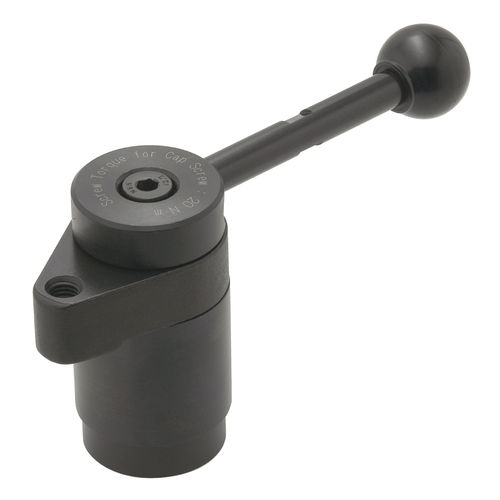

Manual swing clamp for quick workpiece setups without using tools. The clamp arm swings into position over the workpiece and clamps straight down just by turning the handle. Spiral cam provides quick clamping with maximum 1200N. Ideal for machining, assembly and inspection fixture. Machinable jaw is also available from our site. Swing direction of clamp arm: Clockwise (Right) or Counterclockwise (Left) Clamping force: 800 to 1200N Allowable operating load of handle: 150 to 200N Materials Body, Shaft: SCM440 steel, quenched and tempered, Black oxide finish Arm, Adaptor Head: S45C steel, quenched and tempered, Black oxide finish Handle: S45C steel, Black oxide finish Ball knob: Black ABS resin
