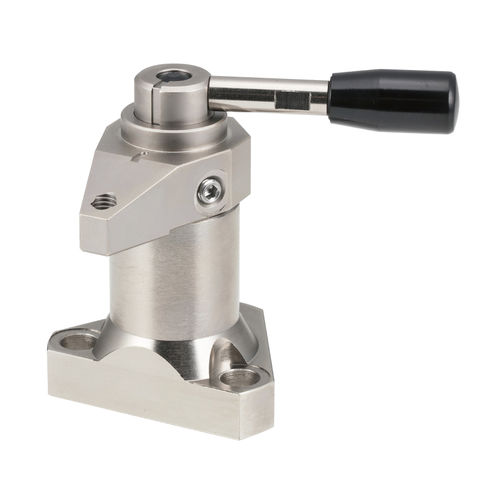

Manual clamping device QLSWWmechanicalspringmachining
Add to favorites
Compare this product
Characteristics
- Type
- mechanical, manual, spring
- Applications
- workpiece, machining
- Other characteristics
- swing, steel, quick, self-locking
- Clamping force
Max.: 1.5 kN
Min.: 0.5 kN
Description
One-Touch Clamps
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Stablelock Swing Clamps
- Features -
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Stablelock Swing Clamps
- Features -
- Mechanical clamp with tool-free swing-down operation for quick clamping and easy workpiece loading.
- Stablelock mechanism with spring-loaded ball and taper provides consistent and secure clamping.
- Handle clicks at clamping end point to provide constant clamping force.
- Available in corrosion-resistant nickel-plated finish.
- Clamping Force (kN): 1
- Flange (mm): 58
- Height (mm): 76
VIDEO
Catalogs
No catalogs are available for this product.
See all of Imao Corporation‘s catalogsExhibitions
