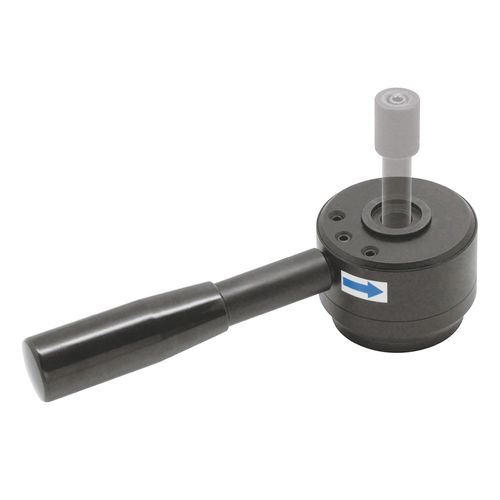

Mechanical pull clamp QLPDH

One-Touch Clamps
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.


Heavy-Duty Pull Clamps
- Features -

• Pull clamp that secures the workpiece by pulling down a mounted screw, keeping the machining area clear.
• This heavy-duty version provides stronger clamping force for demanding machining applications.
• Works with either clamping pins or screws, depending on your setup.

- Specifications -

• Clamping Force (kN): 6 / 8
• Dia (mm): 65 / 80
• Height (mm): 50 / 63
