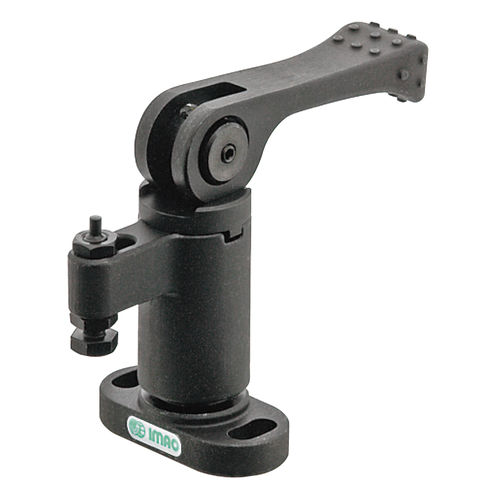

Swing clamp QLSWC
mechanicalmachining

swing clamp
swing clamp
swing clamp
Add to favorites
Compare this product


Characteristics

Type
mechanical
Applications
machining
Other characteristics
swing

Description

Manual swing clamp for quick workpiece setup. Spiral cam provides quick and secure clamping with maximum 2800N just holding down the cam handle. Ideal for machining, assembly, and inspection fixtures. Can clamp both rough and finished surfaces. Swing direction of clamp arm: Clockwise (Right) or Counterclockwise (Left) Clamping force: 800 to 2800N Allowable operating load of handle: 100 to 300N Materials Body, Clamping spindle: S45C steel, quenched and tempered, Black oxide finish/ Electroless nickel plated Arm, Handle: SCM440 steel, quenched and tempered, Black oxide finish/ Electroless nickel plated
