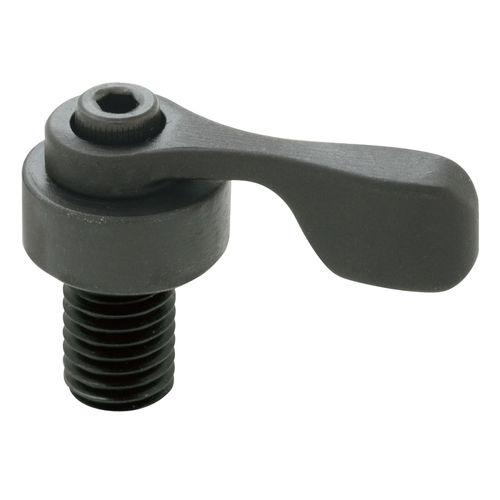

Cam clamping element CP135-Lmechanicalworkpiececompact
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Applications
- workpiece
- Other characteristics
- compact, steel, cam, aluminium, small
- Clamping force
Max.: 700 N
Min.: 300 N
Description
One-Touch Clamps
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Spiral Cam Clamps
- Features -
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Spiral Cam Clamps
- Features -
- Ultra-compact side clamp ideal for clamping multiple workpieces in tight spaces.
- Spiral cam mechanism delivers high clamping force.
- Available with or without a clamping plate to prevent damage to the workpiece.
- Clamping Force (kN): 0.3 - 0.7
- Dia (mm): 12 - 16
- Height (mm): 10.5 - 15.2
