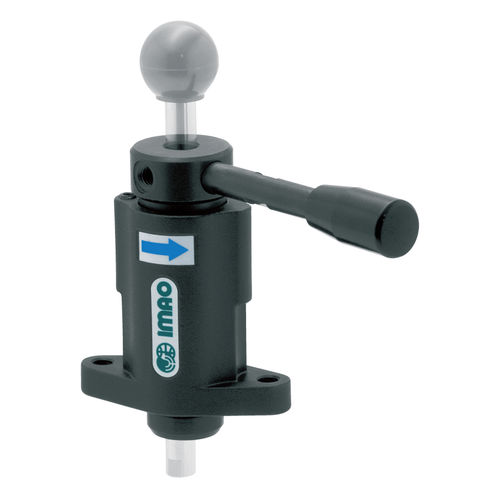

Mechanical clamping unit QLRCFmachiningflange
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Applications
- machining
- Other characteristics
- flange
- Clamping force
Max.: 1,400 N
Min.: 200 N
Description
One-Touch Clamps
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Vertical Thrust Clamps
- Features -
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Vertical Thrust Clamps
- Features -
- Mechanical clamp that pushes the clamping bar straight forward for recessed or hard-to-reach areas.
- Long clamping bar projection range allows for clamping recessed parts.
- Compatible with optional QLRCS clamping bars for customizable setups.
- Clamping Force (kN): 0.2 - 1.4
- Length (mm): 68.5 / 90.7
- Height (mm): 28 / 40
