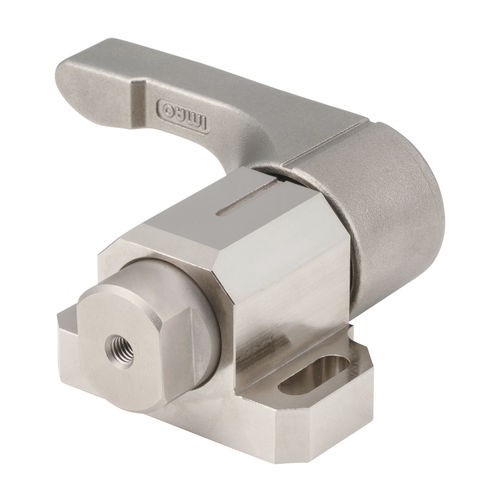

Manual workholding component QLPUWmechanicalspringmachining
Add to favorites
Compare this product
Characteristics
- Type
- mechanical, manual, spring
- Applications
- machining, workpiece
- Other characteristics
- low-profile, horizontal, compact, quick, snap-lock
- Clamping force
Max.: 1 kN
Min.: 0.6 kN
Description
One-Touch Clamps
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Stablelock Push Clamps
- Features -
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Stablelock Push Clamps
- Features -
- Side clamp where the cam handle pushes the jaw forward to push the workpiece.
- Stablelock mechanism with spring-loaded ball and taper provides consistent and secure clamping.
- Handle clicks at clamping end point to provide constant clamping force.
- Available in corrosion-resistant nickel-plated finish.
- Clamping Force (kN): 0.8
- Flange (mm): 52
- Height (mm): 33.5
VIDEO
