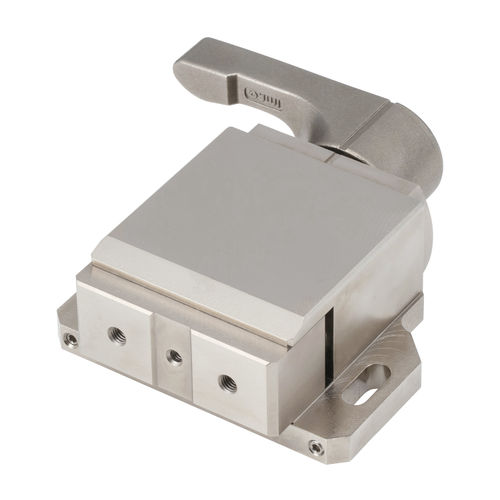

Manual clamping unit QLSCW

mechanicalmachiningworkpiece

One-Touch Clamps
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.


Stablelock Side Clamps
- Features -

• Side clamp where the cam handle pushes the jaw forward to apply downward force to the workpiece.
• Stablelock mechanism with spring-loaded ball and taper provides consistent and secure clamping.
• Handle clicks at clamping end point to provide constant clamping force.
• Available in corrosion-resistant nickel-plated finish.

- Specifications -

• Clamping Force (kN): 2
• Flange (mm): 86
• Height (mm): 36
