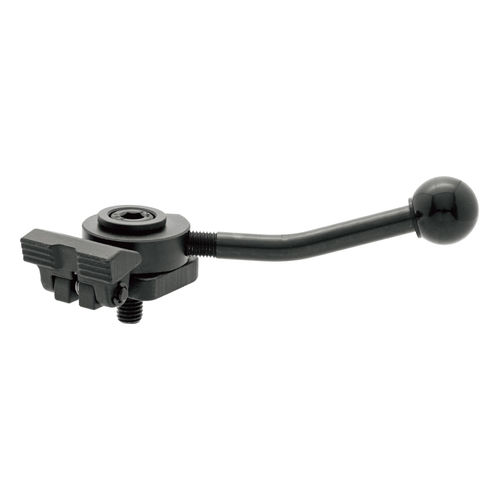

Mechanical clamping device QLSCmachiningsteellow-profile
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Applications
- machining
- Other characteristics
- steel, low-profile, cam
- Clamping force
Min.: 2,500 N
Max.: 5,000 N
Description
One-Touch Clamps
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Cam Edge Clamps
- Features -
Mechanical quick clamps developed for machining fixtures.
Quick and easy clamping by turning the handle slashes setup time.
Spiral cam mechanism delivers strong clamping force.
Cam Edge Clamps
- Features -
- Side clamp where the cam handle pushes the jaw forward to apply downward force to the workpiece.
- Spiral cam mechanism delivers high clamping force.
- Clamping Force (kN): 2.5 / 5
- Body (mm): 44 / 62
- Height (mm): 38 / 55
