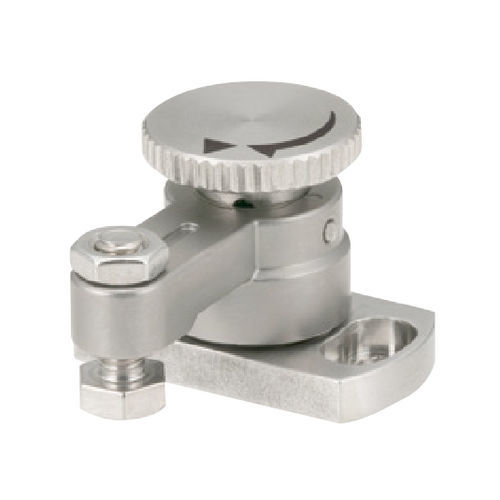

Spring clamping device QLSWM series

swingminiature

Product Name MINI SPRING SWING CLAMPS

Model code shown on page QLSWM

Overview Product page provides a product video, a downloadable PDF datasheet (Latest Datasheet) and a technical information link titled "Spring Clamps Introduction". Individual CAD entries are listed per part number; CAD download is available on PC only.

CAD Data QLSWM16R-01: DXF, DWG, SOLIDWORKS (zip), IGES (zip), Parasolid (zip), STEP (zip)
QLSWM16L-01: DXF, DWG, SOLIDWORKS (zip), IGES (zip), Parasolid (zip), STEP (zip)

Documents Latest datasheet (PDF) is available for download from the product page.

Multimedia Product video (MP4) is embedded on the product page for visual reference of operation and mounting.

Compliance / Status Page indicates RoHS compliance and displays a "New" badge for the listed entries.

Technical Information A technical information link titled "Spring Clamps Introduction" is provided under Technical Information.

Specifications

• Brand: IMAO
• Denomination / Model series: QLSWM
• Displayed product code: QLSWM (page label)
• Part numbers listed: QLSWM16R-01, QLSWM16L-01
• Available CAD file formats: DXF, DWG, SOLIDWORKS (zip), IGES (zip), Parasolid (zip), STEP (zip)
• Datasheet: PDF available
• Video: MP4 product video provided
• Compliance: RoHS indicated
