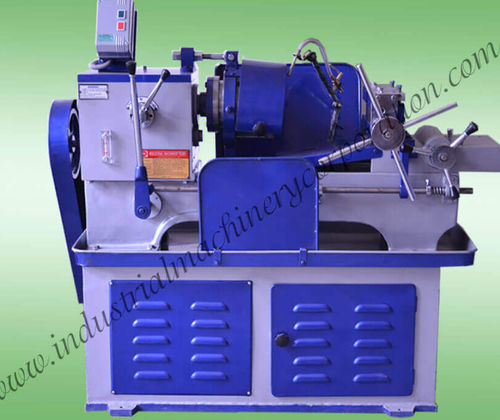

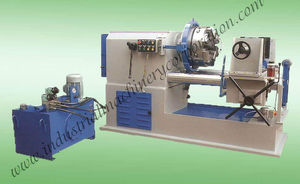

High-speed threading machine

Product description

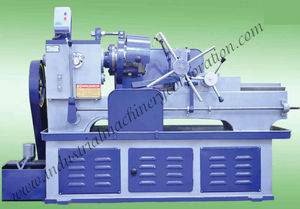

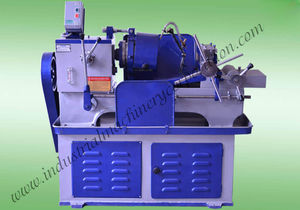

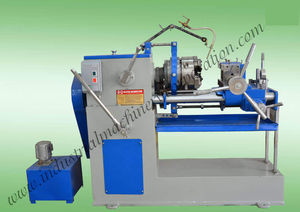

Industrial Machinery Corporation supplies the IMC bar thread cutting machine designed to cut external threads on bars and rods using a tangential chaser or die-head. The workpiece remains stationary while the die-head or chaser rotates, enabling consistent external thread forms including BSW, NPT, UNF, Metric, UNC, ACME and BSF.

Process

• Preparation: clean and inspect the bar to ensure straightness and absence of deformities.
• Adjustment: set machine for required thread pitch, diameter and length.
• Thread cutting: clamp component securely; the die-head or chaser rotates around the bar to cut or form the thread.
• Finishing: remove component, deburr and perform quality check.

Key Features

• High-speed and precision thread cutting suitable for production runs
• Interchangeable die-heads and chasers to cover a wide range of thread types
• Model range for diameters from 1/4"–2.1/2" (6 mm–65 mm)

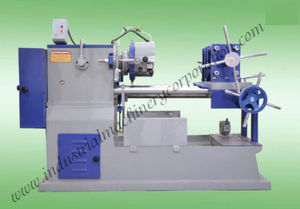

• Bed-type construction for stable, repeatable operations
• Simple controls for operator setup and changeover
• Safety guards and built-in protections

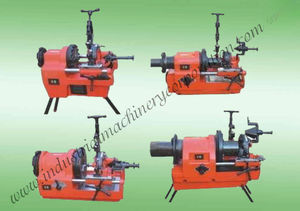

• Low maintenance design and optional portability on some models
• Customization options to meet specific production requirements

Applications

• Construction: threaded rods for concrete and structural connections
• Manufacturing: components and bars for machinery and equipment
• General industry: any requirement for consistent external thread cutting on rods and bars

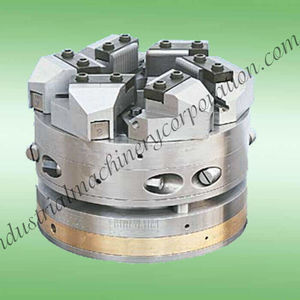

Range of IMC Die-Head
1/4" to 1" | 3/8" to 1.1/2" | 1/2" to 2.1/2" (6 mm–25 mm | 10 mm–40 mm | 12 mm–65 mm)

Tangential Chaser
IMC tangential chasers are made from imported high-speed steel with controlled metallurgy and heat treatment. Individual chaser pieces are interchangeable so damaged elements can be replaced without changing the full set.

Specifications

• Models: 1/4" to 1" (6 mm–25 mm); 3/8" to 1.1/2" (10 mm–40 mm); 1/2" to 2.1/2" (12 mm–65 mm)
• Saddle movement (by model): 10", 13", 22"
• Spindle speed range: 75–140 rpm (smaller models), 45–90 rpm (largest model)
• Number of spindle speeds: 2
• Thread cutting capacity: per model ranges above
• Production rate: approximately 60–90 pieces/hour depending on model
• Power required: 3 H.P. (two smaller models), 7.5 H.P. (largest model)
• Lead screw: optional
• Approx. weight: 500 kg, 550 kg, 990 kg (by model)
