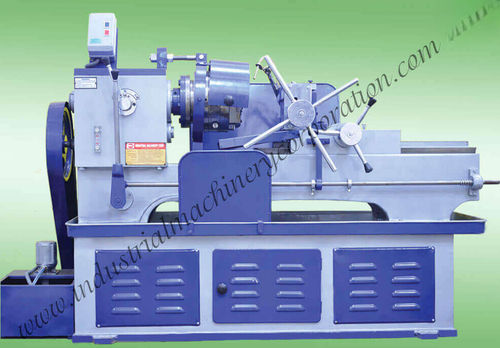

Automatic pipe threading machine

scaffolding

Overview
Industrial-grade scaffolding pipe threading machine designed for continuous on-site and workshop use. Available in Bed (bench) and Pillar configurations, the machine processes scaffold tubes with threading by either thread cutting or thread rolling, suitable for a wide range of production rates and thread lengths.

Applications

• Threading of construction scaffolding tubes
• Prefabrication shops and maintenance workshops
• High-volume production lines (rolling) and small-batch or long-thread jobs (cutting)

Available Options

• Thread Type
  • ACME
  • Other profiles
  • Don't Know Exactly
• Thread Length Required
  • UP TO 4" (100MM)
  • UP TO 12" (300MM)
  • UP TO 24" (600MM)
  • Other
  • Don't Know Exactly
• Diameter of the job
  • 3/8" to 1.1/2" (10MM to 40MM)
  • 3/8" to 2" (10MM to 50MM)
  • 1/2" to 2.1/2" (12MM to 65MM)
  • 1" to 4" (25MM to 100MM)
  • Other
  • Don't Know Exactly
• Purchase
  • Immediately
  • Within a week
  • Within 15 days
  • Within a month
  • Other
  • Don't Know Exactly
• Expected Price
  • Input field (user-defined)

Specifications

• Model (Bed Type): 1/2" to 2.1/2" (12MM to 65MM)
• Model (Pillar Type): 1/2" to 2.1/2" (12MM to 65MM)
• Saddle Movement (Bed Type): 24"
• Saddle Movement (Pillar Type): 16"
• Spindle Speed Range (Bed Type): 45-90
• Spindle Speed Range (Pillar Type): 60-90-120
• Number of Spindle Speeds (Bed Type): 2
• Number of Spindle Speeds (Pillar Type): 3
• Threading Capacity: 1/2" to 2.1/2" (both types)

Production & Power

• Production per Hour (Bed Type): 25-40 pieces
• Production per Hour (Pillar Type): 35-60 pieces
• H.P. Required: 7.5 H.P. (both types)
• Lead Screw: Optional (both types)
• Weight (Approx.): 990 kg (Bed Type), 1100 kg (Pillar Type)
