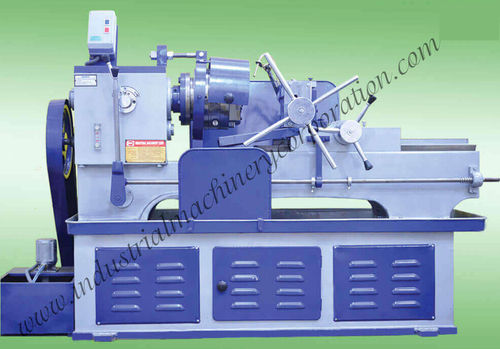

Automatic threading machine

screwautomaticrod

Product Overview
IMC Rod Thread Cutting Machine is designed to cut external threads on rods using tangential chasers. The workpiece remains stationary while the die head rotates to form threads in standards such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME and BSF. IMC supplies this model for dependable thread production with reduced maintenance; gears are case-hardened and hob-cut for quiet operation at high speed.

Main Components

• Base
• Head Stock
• Saddle
• Bed Clamping Vice
• Die Head

Range of IMC Die Heads
1/4" to 1" (6MM to 25MM) (bed type); 3/8" to 1.1/2" (10MM to 40MM) (bed type); 1/2" to 2.1/2" (12MM to 65MM) (bed type).

Available Options

• Thread Type: METRIC, ACME, UNC, BSW, Others, Don't Know Exactly
• Thread Length Required: UPTO 4" (100MM), UPTO 12" (300MM), UPTO 24" (600MM), Others, Don't Know Exactly
• Diameter of the job: 1/4" to 1" (6MM to 25MM), 3/8" to 1.1/2" (10MM to 40MM), 3/8" to 2" (10MM to 50MM), 1/2" to 2.1/2" (12MM to 65MM), 1" to 4" (25MM to 100MM), Others, Don't Know Exactly
• Purchase timeline options (for buyer): Immediately, Within a week, Within 15 days, Within a month, Others, Don't Know Exactly

Notes on Construction & Performance
Manufactured with precise workmanship and durable materials. All gears are case-hardened steel with extra face and tooth thickness and are cut on hobbing machines to ensure low noise even at high spindle speeds. The design emphasizes efficient thread generation and low maintenance requirements.

Technical Table
MODEL columns: 1/4" TO 1" (6MM to 25MM) (BED TYPE) | 3/8" TO 1.1/2" (10MM to 40MM) (BED TYPE) | 1/2" TO 2.1/2" (12MM to 65MM) (BED TYPE)
Saddle Movement: 10" | 13" | 22"
Spindle Speed Range: 75-140 | 75-140 | 45-90
Number of Spindle Speed: 2 | 2 | 2
Threading Capacity: 1/4" to 1" | 3/8" to 1.1/2" | 1/2" to 2.1/2"
Production per Hour: 60-80 | 60-80 | 70-90
H.P. Required: 3 H.P. | 3 H.P. | 7.5 H.P.
Lead Screw: Optional | Optional | Optional
Weight (KG) Approx.: 500 | 550 | 990

Tags / Typical Uses

• Rod Threading Machine
• rod threading die head
• automatic rod threading machine
• Rod threading machine price in india
• Wholesale High-End Precision steel rod threading machine

Technical specifications

• Function: External thread cutting on rods using tangential chasers
• Thread types supported: BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF
• Main parts: Base, Head Stock, Saddle, Bed Clamping Vice, Die Head
• Model ranges (diameter): 6 mm to 25 mm; 10 mm to 40 mm; 12 mm to 65 mm
• Saddle movement: 10", 13", 22" (depending on model)
• Spindle speed ranges: 75-140 rpm (two models), 45-90 rpm (larger model)
• Number of spindle speeds: 2
• Production rate: ~60-90 pieces/hour depending on model
• Motor power required: 3 H.P. (smaller models), 7.5 H.P. (largest model)
• Lead screw: Optional
• Approx. weight: 500 kg, 550 kg or 990 kg depending on model
