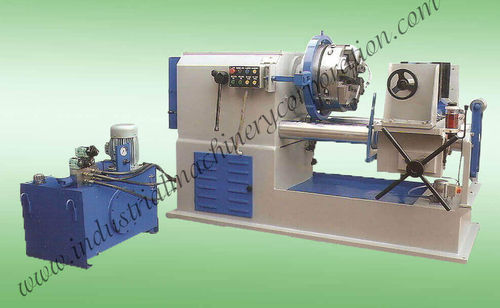

Automatic pipe threading machine

manualhydraulic

Product Overview
Hydraulic pipe thread cutting machine with pillar-type construction. Operable in automatic and manual modes from a control panel. Supplied with a power pack and five dedicated hydraulic cylinders. Optional PLC control provides automatic thread-length maintenance and one-click thread-length changes without altering other settings.

Key Functional Details

• Control: Automatic and manual operation via control panel; optional PLC for automatic thread-length control and quick changes.
• Hydraulics: Power pack plus five separate hydraulic cylinders for clamping, lead-screw engagement, die-head positioning, die-head opening/closing and job stop to maintain thread length.
• Machine Type: Pillar-type machine with automatic opening mechanism to reduce manual handling.

Range of IMC Die Heads

• 1/2" to 2.1/2" (12–65 mm)
• 1" to 4" (25–100 mm)
• 2.1/2" to 6" (65–150 mm)
• 4" to 8" (100–200 mm)

Available Options

• Thread type: BSP, BSPT, NPT, BSW, other
• Thread length required: up to 4" (100 mm), up to 12" (300 mm), up to 24" (600 mm), other
• Job diameter: 3/8" to 2" (10–50 mm), 1/2" to 2.1/2" (12–65 mm), 1" to 4" (25–100 mm), 2.1/2" to 6" (65–150 mm), 4" to 8" (100–200 mm), other
• Purchase timing: Immediately, within a week, within 15 days, within a month, other
• Expected price: user-entered value

Specifications
Model:
1/2" to 2.1/2" (12 mm to 65 mm) (Pillar Type)
1" to 4" (25 mm to 100 mm) (Pillar Type)
2.1/2" to 6" (65 mm to 150 mm) (Pillar Type)
4" to 8" (100 mm to 200 mm) (Pillar Type)

Saddle Movement: 12" - 16" / 10" - 12" / 8" / 8"
Spindle Speed Range: 60-90-120 / 40-75-115 / 25-50 / 25-50
Number of Spindle Speeds: 3 / 3 / 2 / 2
Threading Capacity: 1/2" to 2.1/2" / 1" to 4" / 2.1/2" to 6" / 4" to 8"
Production per Hour: 70-90 / 35-40 / 20-25 / 15-20
H.P. Power Required (960 RPM): 7.5 H.P. / 12.5 H.P. / 15 H.P. / 20 H.P.
Lead Screw: Automatic (all models)
Weight (KG) Approx.: 990 / 1600 / 1900 / 2500

Notes on Design & Performance
The machine is engineered to industry standards with multiple models to match varied production and capacity needs, including differences in power, saddle movement, threading capacity, spindle-speed ranges and hourly output. Pillar-type construction combined with an automatic opening mechanism reduces manual interventions and improves operational throughput.

Technical specifications

• Model A: 1/2" to 2.1/2" (12 mm to 65 mm) - Pillar Type; Saddle Movement: 12"-16"; Spindle Speeds: 60-90-120; Number of Speeds: 3; Threading Capacity: 1/2" to 2.1/2"; Production/hr: 70-90; Power (960 RPM): 7.5 H.P.; Lead Screw: Automatic; Weight: ~990 kg.
• Model B: 1" to 4" (25 mm to 100 mm) - Pillar Type; Saddle Movement: 10"-12"; Spindle Speeds: 40-75-115; Number of Speeds: 3; Threading Capacity: 1" to 4"; Production/hr: 35-40; Power (960 RPM): 12.5 H.P.; Lead Screw: Automatic; Weight: ~1600 kg.
• Model C: 2.1/2" to 6" (65 mm to 150 mm) - Pillar Type; Saddle Movement: 8"; Spindle Speeds: 25-50; Number of Speeds: 2; Threading Capacity: 2.1/2" to 6"; Production/hr: 20-25; Power (960 RPM): 15 H.P.; Lead Screw: Automatic; Weight: ~1900 kg.
• Model D: 4" to 8" (100 mm to 200 mm) - Pillar Type; Saddle Movement: 8"; Spindle Speeds: 25-50; Number of Speeds: 2; Threading Capacity: 4" to 8"; Production/hr: 15-20; Power (960 RPM): 20 H.P.; Lead Screw: Automatic; Weight: ~2500 kg.
• Hydraulic System: Five separate hydraulic cylinders with dedicated functions for pipe clamping, lead-screw engagement, die-head travel/positioning, die-head opening/closing and job stop to maintain thread length.
