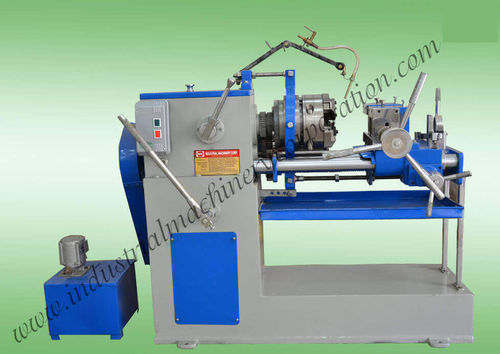

PVC pipe threading machine

Product Description
The PVC Pipe Threading Machine is a heavy‑duty industrial unit designed to cut external threads on PVC and similar plastic pipes using tangential chasers. The chaser remains stationary while the die‑head rotates, allowing precise cutting of parallel and taper threads including BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME and BSF standards.

Main Components

• Base
• Head stock
• Saddle
• Bed / Pillar type clamping vice
• Die head

Design and Workmanship
The machine is engineered for consistent thread profiles within specified tolerances. Components are selected and machined for repeatable performance in industrial production environments.

Head Stock
Heavy‑duty geared head box with high‑quality casting that supports the spindle bearings. The gear box is lubricated and fitted with three extra heavy‑duty bearings for long service life.

The Bed
Pillar‑type bed with two precision steel pillars, hard chrome plated for wear resistance and smooth guidance of the saddle.

The Saddle
Saddle is accurately fitted on the pillars for smooth longitudinal travel and precise alignment with the head stock center.

The Apron
The apron provides saddle movement and head transfer along the pillars via steel rack and pinion. All gears are made of high‑quality steel to ensure reliable feed action.

Vice Jaws
Vice jaws are manufactured from heat‑treated alloy steel, mounted in a heavy‑duty box‑type vice on the saddle and aligned with the head stock center. Movement is controlled by a screw feed on the saddle.

Range of IMC PVC Pipe Threading Machines and Die Heads

• 1/4" to 1"
• 3/8" to 1.1/2"
• 1/2" to 2.1/2"

Available Options

• Thread Type: BSP, BSPT, NPT, BSW, Others
• Thread Length Required: UP TO 4" (100MM), UP TO 12" (300MM), UP TO 24" (600MM), Others
• Diameter of the Job: 1/4" to 1" (6MM to 25MM), 3/8" to 1.1/2" (10MM to 40MM), 3/8" to 2" (10MM to 50MM), 1/2" to 2.1/2" (12MM to 65MM), 1" to 4" (25MM to 100MM), 2.1/2" to 6" (65MM to 150MM), 4" to 8" (100MM to 200MM), 8" to 10" (200MM to 250MM), Others
• Purchase Urgency: Immediately, Within a week, Within 15 days, Within a month, Others

Specifications (summary table)
Model columns: 3/8" to 2" (10MM to 50MM) | 1/2" to 2.1/2" (12MM to 65MM) | 1" to 4" (25MM to 100MM) | 2.5" to 6" (65MM to 150MM) | 4" to 8" (100MM to 200MM) | 8" to 10" (200MM to 250MM)
Saddle Movement: 10"-12" | 16" | 10"-12" | 8" | 8" | 8"
Spindle Speed Range: 127-180 | 60-90-120 | 40-75-115 | 25-50 | 25-50 | 10-20-30
Number of Spindle Speeds: 2 | 3 | 3 | 2 | 2 | 3
Threading Capacity: 3/8" to 2" | 1/2" to 2.1/2" | 1" to 4" | 2.1/2" to 6" | 4" to 8" | 8" to 10"
Production per Hour: 100-120 | 70-90 | 35-40 | 20-25 | 15-20 | 15-20
H.P. Required: 3 H.P. | 7.5 H.P. | 12.5 H.P. (960) | 15 H.P. (960) | 20 H.P. (960) | 30 H.P. (960)
Lead Screw: Provided on all models
Weight (KG) Approx.: 550 | 990 | 1600 | 1900 | 2500 | 5000

Technical Specifications

• Model name: PVC Pipe Threading Machine
• Supported thread types: BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF
• Main components: Base, Head stock, Saddle, Bed/Pillar type clamping vice, Die head
• Head stock: Heavy‑duty geared head box with three extra heavy‑duty bearings
• Bed: Pillar type with two hard chrome plated pillars
• Saddle: Precisely fitted on pillars for smooth, accurate alignment
• Apron: Saddle movement via steel rack and pinion; high‑quality steel gears
• Vice jaws: Heat‑treated alloy steel, screw‑controlled movement
• Available model ranges: from 1/4" to 10" (various capacity ranges as listed above)
• Saddle movement options: 8" / 10"-12" / 16" depending on model
• Spindle speeds: Multiple speed ranges depending on model (examples listed above)
• Production rate: Approximately 15 to 120 pieces per hour depending on model and size
• Motor power range: From 3 H.P. up to 30 H.P. depending on model
• Lead screw: Provided on all models
• Approx. weight range: 550 kg to 5000 kg depending on model
